Frein de roue avant for BMW 1500-2000CS 1800 (1971)

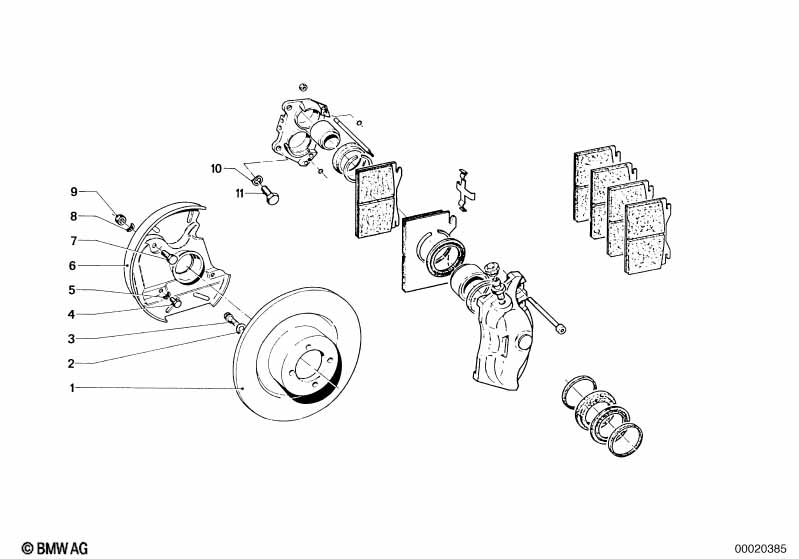

This Frein de roue avant technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Disque de frein | 272X13 | 2 | 34111152088 | $161.06 | Shop at ECS Tuning | ||||
| 02 | Jeu rondelle grower 20 | B10 | 8 | 07509064021 | arrêté | Shop at ECS Tuning | ||||
| 03 | Vis cylindrique | M10X25-10.9 PHR | 8 | 07119919994 | $0.84 | Shop at ECS Tuning | ||||
| 04 | Vis six pans | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Rondelle elastique | B6 | 4 | 07119932072 | $0.09 | arrêté | Shop at ECS Tuning | |||
| 06 | Tôle de protection | 1 | 34112760115 | arrêté | Shop at ECS Tuning | |||||
| 06 | Tôle de protection | 1 | 34112760116 | $27.06 | arrêté | Shop at ECS Tuning | ||||
| 07 | Vis | 2 | 34112760117 | arrêté | Shop at ECS Tuning | |||||
| 08 | Rondelle elastique | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Ecrou à six pans | M8-8-ZNS3 | 2 | 01/1972 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 09 | Ecrou à six pans | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 10 | Rondelle elastique | B12-ZN | 4 | 07119932132 | $0.25 | arrêté | Shop at ECS Tuning | |||
| 11 | Vis six pans | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
