Tuyau de frein arrière for BMW 1502-2002tii 2002 (1975)

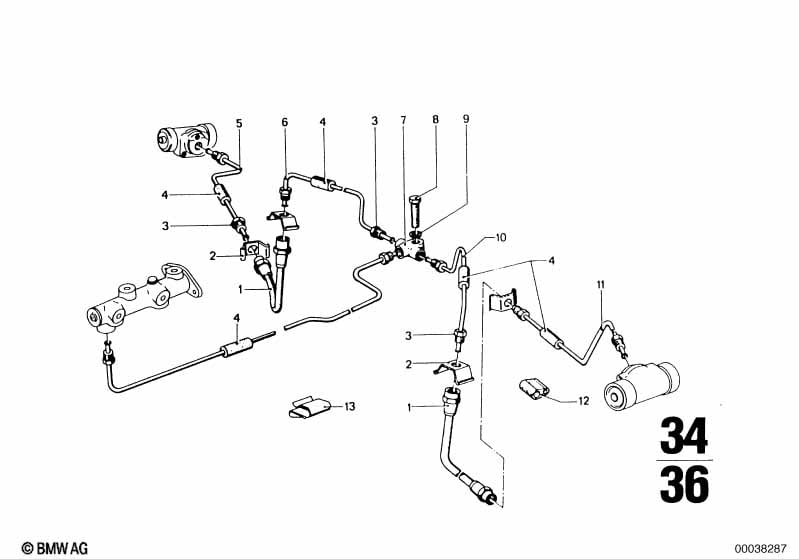

This Tuyau de frein arrière technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flexible de frein AR | L=222MM | 2 | 09/1967 | 07/1976 | 34321159878 | $38.29 | Shop at ECS Tuning | ||
| 02 | Ressort de fixation | 4 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 03 | Ecrou à capuchon | M10X1 | 10 | 34321151806 | $1.22 | arrêté | Shop at ECS Tuning | |||
| 04 | Manchon de caoutchouc | 8 | 34324050540 | $1.32 | Shop at ECS Tuning | |||||
| 05 | Tuyau | M10/M10-544MM | 1 | 34323412744 | $24.65 | Shop at ECS Tuning | ||||
| 06 | Tuyau | M10/M10-400MM | 1 | 34326755569 | $8.50 | Shop at ECS Tuning | ||||
| 07 | Pièce de distribution | M10X1 | 1 | 10/2003 | 34331163566 | $8.78 | arrêté | Shop at ECS Tuning | ||
| 07 | Pièce de distribution | M10X1 | 1 | 34341111435 | $8.08 | arrêté | Shop at ECS Tuning | |||
| 08 | Vis six pans | M6X25 | 1 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Rondelle elastique | B6 | 1 | 07119932072 | $0.09 | arrêté | Shop at ECS Tuning | |||
| 10 | Tuyau | M10/M10-420MM | 1 | 34326755571 | $7.60 | Shop at ECS Tuning | ||||
| 11 | Tuyau | M10/M10-544MM | 1 | 34323412744 | $24.65 | Shop at ECS Tuning | ||||
| 12 | Support | 8 | 09/1967 | 07/1976 | 34321115086 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
