Commande d'accelerateur/cable for BMW 3 Series E21 316

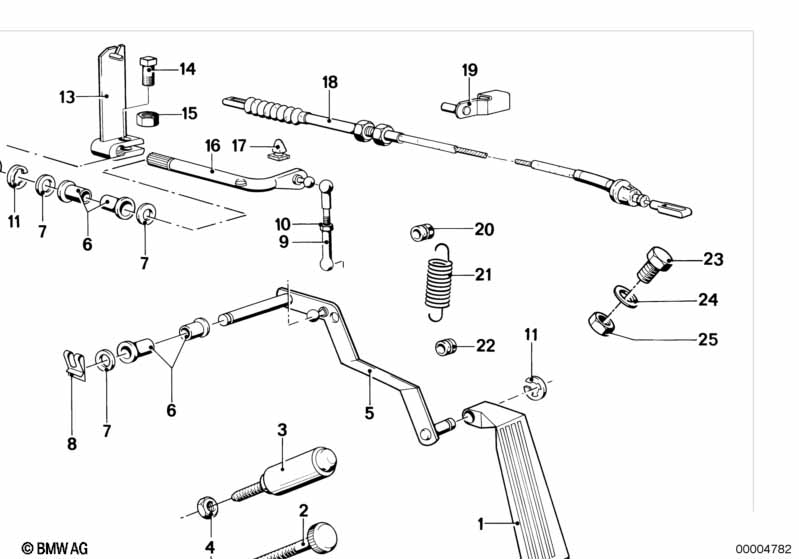

This Commande d'accelerateur/cable technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pedale d'accelerateur | 1 | 35411105414 | $24.55 | Shop at ECS Tuning | |||||
| 02 | Vis six pans | M6X40 | 1 | 08/1977 | 07119912310 | $0.43 | Shop at ECS Tuning | |||
| 02 | Vis moletee | M8X71MM | 1 | 08/1977 | 35411157679 | $1.17 | Shop at ECS Tuning | |||
| 04 | Ecrou à six pans | M6-04-2-ZN | 1 | 08/1977 | 07119921054 | $0.11 | Shop at ECS Tuning | |||
| 04 | Ecrou à six pans | BM8 | 1 | 08/1977 | 07119921077 | $0.13 | arrêté | Shop at ECS Tuning | ||
| 05 | Levier | 1 | 06/1981 | 35411114362 | arrêté | Shop at ECS Tuning | ||||
| 05 | Levier | 1 | 06/1981 | 35411151556 | Shop at ECS Tuning | |||||
| 06 | Coussinet | D=10MM | 4 | 35411100674 | $0.80 | Shop at ECS Tuning | ||||
| 07 | Plaque d'appui | 10,5 | 3 | 07/1991 | 07119931649 | $0.24 | Shop at ECS Tuning | |||
| 07 | Plaque d'appui | 10-200HV-ZNNIV | 3 | 07119907114 | Shop at ECS Tuning | |||||
| 08 | Agrafe | 1 | 35411104248 | $0.82 | arrêté | Shop at ECS Tuning | ||||
| 09 | Tringle de liaison | 1 | 35411116505 | arrêté | Shop at ECS Tuning | |||||
| 10 | Ecrou à six pans | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 11 | Disque de securite | 8,0 | 2 | 07119932863 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Entretoise | GRAENGES | 1 | 72111815729 | $0.57 | Shop at ECS Tuning | ||||
| 13 | Levier | 1 | 35411114370 | arrêté | Shop at ECS Tuning | |||||
| 14 | Vis à tête carrée | 1 | 35411117743 | $3.53 | Shop at ECS Tuning | |||||
| 15 | Ecrou à six pans autobloquant | M6-10 ZN | 1 | 09/1983 | 07129922705 | $0.27 | arrêté | Shop at ECS Tuning | ||
| 15 | Ecrou à six pans autobloquant | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Arbre | 1 | 35411114368 | arrêté | Shop at ECS Tuning | |||||
| 17 | Butée | 1 | 35412458002 | arrêté | Shop at ECS Tuning | |||||
| 18 | Cable a tirette | 1 | 08/1980 | 35411115456 | $30.41 | Shop at ECS Tuning | ||||
| 18 | Cable a tirette | 1 | 08/1980 | 35411152685 | $30.69 | Shop at ECS Tuning | ||||
| 20 | Douille | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 21 | Ressort de traction | 1 | 35411116440 | Shop at ECS Tuning | ||||||
| 22 | Douille | 1 | 35311113725 | $0.72 | Shop at ECS Tuning | |||||
| 23 | Vis six pans | M6X10-8.8-ZNS3 | 2 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 24 | Plaque d'appui | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 25 | Ecrou à six pans | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
