Potentiomètre de pédale d'accélérateur for BMW 5 Series E39 525tds (1999)

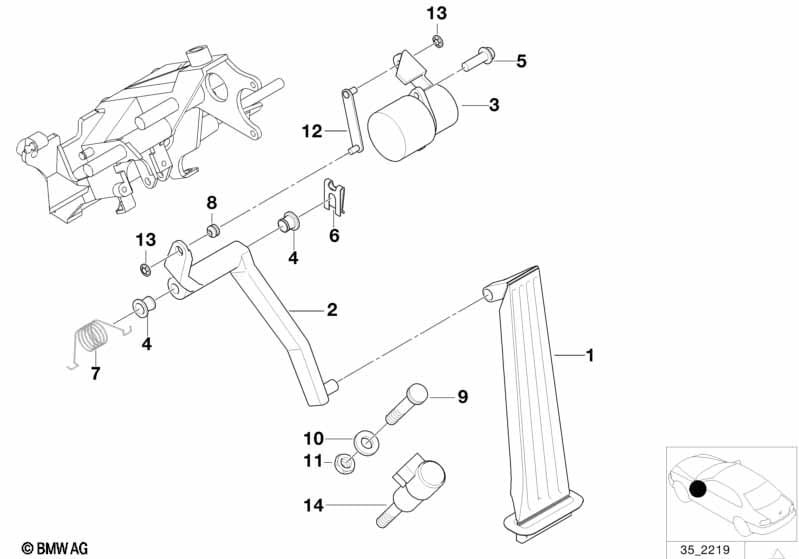

This Potentiomètre de pédale d'accélérateur technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pedale d'accelerateur | 1 | 35411161723 | $26.33 | Shop at ECS Tuning | |||||
| 02 | Pedale | 1 | 35411162207 | $12.08 | Shop at ECS Tuning | |||||
| 03 | Potentiomètre de pédale d'accélérateur | 8-POLIG | 1 | 13622245690 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Levier de potenciom.de pedale d'accel. | 1 | 35411164248 | $12.60 | Shop at ECS Tuning | |||||
| -- | Ecrou à six pans | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Coussinet | D=10MM | 2 | 35411100674 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Vis six pans avec rondelle | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 06 | Fusible | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Ressort de torsion | 1 | 35411161562 | $1.17 | Shop at ECS Tuning | |||||
| 08 | Douille | 1 | 35411157138 | $0.95 | Shop at ECS Tuning | |||||
| 09 | Vis moletee | M8X71MM | 1 | 35411159345 | $2.75 | Shop at ECS Tuning | ||||
| 10 | Recouvrement | D=36MM | 1 | 35411156142 | $0.52 | Shop at ECS Tuning | ||||
| 11 | Ecrou à six pans | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 12 | Tringle de liaison | 1 | 35411161840 | $2.85 | Shop at ECS Tuning | |||||
| 13 | Blocage axial | 15X5,7MM | 2 | 07149158226 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
