BMW jante AL rayons en étoile 655 -17'' for BMW 2 Series F22 230iX

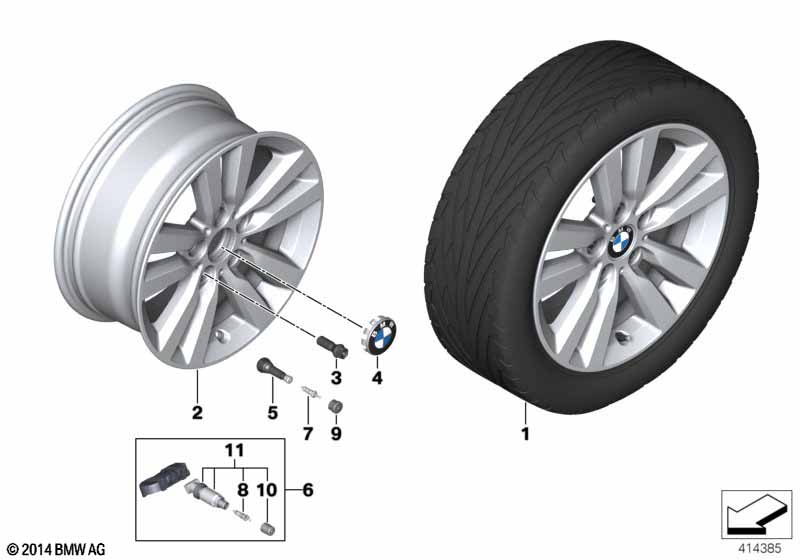

This BMW jante AL rayons en étoile 655 -17'' technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 230iX. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention : En raison du règlement de l'UE sur les batteries, une désignation des pièces est légalement obligatoire pour les capteurs RDC ou pour les composants avec batterie montée de manière fixe ! Lors de l' ach at de ce produit, le do cument ci-joint doit être imprimé et remis ! Remarque : Seulement pour véh. avec homologation européenne. La combinaison roue/pneu sélectionnée doit dans certains cas faire l'objet d'une mention dans les papiers du véhicule. Prière de contrôler si la combinaison roue/pneu est inscrite dans le CoC (certificat de conformité européenne) du véhicule. Si ce n'est pas le cas, une homologation nationale spécifique est obligatoire !! Pour véhicules avec Roue all. BMW à rayons doubles 655 |
S24AA=Oui |
||||||||
| Pour véhicules avec Système de freinage sport |
SZP1A=Non |
|||||||||
| 02 | Jante en alliage léger Ferricgrey | 7,5JX17 ET43 | 4 | 03/2014 | 36116866303 | Shop at ECS Tuning | ||||
| UNIQUEMENT POUR PNEUS HIVER | ||||||||||
| 03 | Boulon de roue noir | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Chapeau de moyeu avec bord chromé | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| Pour véhicules avec Avertisseur de crevaison |
S2VBA=Non |
|||||||||
| 05 | Soupape en caoutchouc | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| Pour véhicules avec Avertisseur de crevaison |
S2VBA=Oui |
|||||||||
| 06 | Module élect. roue RDCi a. valve vissée | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| Pour véhicules avec Avertisseur de crevaison |
S2VBA=Non |
|||||||||
| 07 | Intérieur de valve | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| Pour véhicules avec Avertisseur de crevaison |
S2VBA=Oui |
|||||||||
| 08 | Obus de valve RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| Pour véhicules avec Avertisseur de crevaison |
S2VBA=Non |
|||||||||
| 09 | Bouchons de soupape | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| Pour véhicules avec Avertisseur de crevaison |
S2VBA=Oui |
|||||||||
| 10 | Capuchon de valve RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | Kit répar. valve vissable RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
