Panneau latéral avant for BMW 7 Series E38 728i (2001)

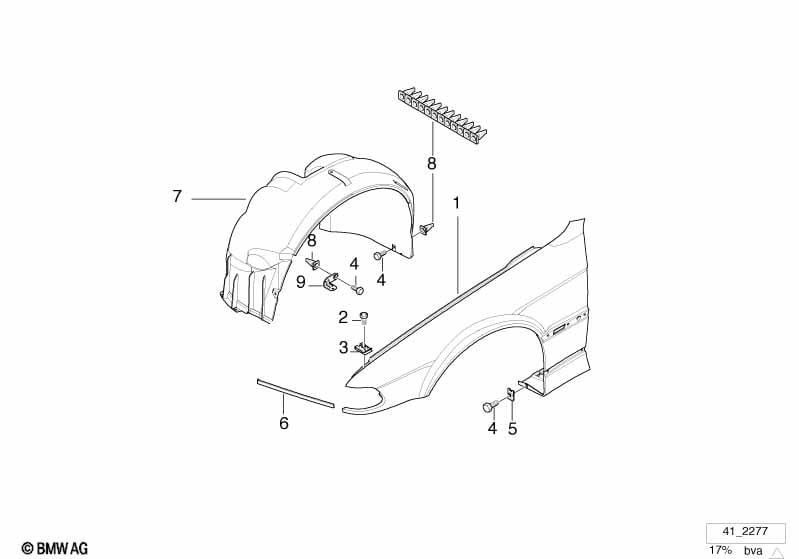

This Panneau latéral avant technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panneau latéral avant gauche | 1 | 09/1998 | 41358269095 | $539.67 | Shop at ECS Tuning | ||||
| 01 | Panneau latéral avant droit | 1 | 09/1998 | 41358269096 | $539.67 | Shop at ECS Tuning | ||||
| 02 | Vis à tôle à six pans | ST6,3X16-C-Z1 | 2 | 07119916965 | $0.27 | Shop at ECS Tuning | ||||
| 02 | Vis Torx | ISA ST6,3X14 | X | 41009163211 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Ecrou tôlé | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 04 | Vis à tôle à six pans | ST4,8X13-C-U1-Z | X | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Ecrou tôlé | ST4,8-11-ZN | 2 | 07129904217 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Cache en appret gauche | 1 | 09/1998 | 51138236891 | $25.05 | Shop at ECS Tuning | ||||
| 06 | Cache en appret droit | 1 | 09/1998 | 51138236892 | $25.05 | Shop at ECS Tuning | ||||
| 06 | Cache peint gauche | CODE - UNI/MET. | 1 | 09/1998 | 51130000443 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| Indiquer code couleur à la commande | ||||||||||
| 06 | Cache peint droit | CODE - UNI/MET. | 1 | 09/1998 | 51130000444 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| Indiquer code couleur à la commande | ||||||||||
| 07 | Cache de passage de roue avant gauche | 1 | 51718150289 | $84.33 | Shop at ECS Tuning | |||||
| 07 | Cache de passage de roue avant droite | 1 | 51718150290 | $84.33 | Shop at ECS Tuning | |||||
| 08 | Ecrou extensible | ST 4.8 WEISS | X | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
