Plancher de coffre/pieces laterales for BMW 3 Series E21 320i (1979)

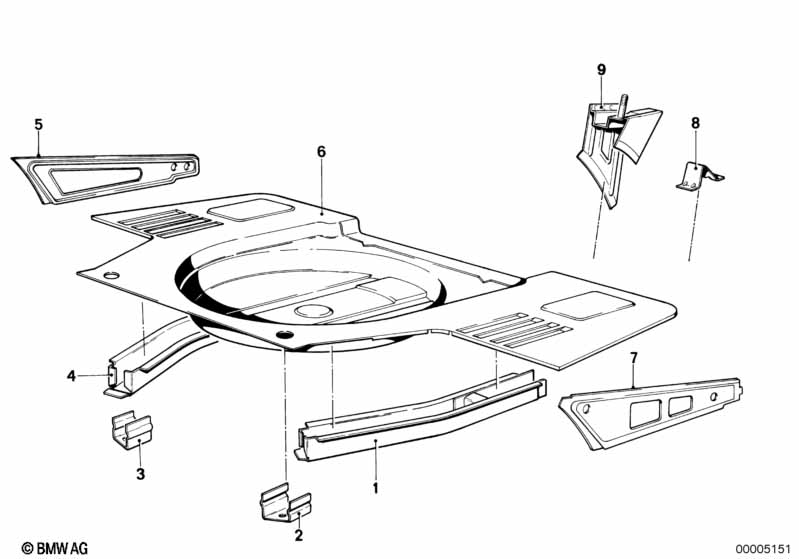

This Plancher de coffre/pieces laterales technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Longeron arrière gauche | 1 | 41111855005 | $126.27 | arrêté | Shop at ECS Tuning | ||||
| 02 | Renfort gauche | 1 | 41111855003 | arrêté | Shop at ECS Tuning | |||||
| 03 | Renforcem.droite | 1 | 41111855004 | arrêté | Shop at ECS Tuning | |||||
| 04 | Longeron arrière droite | 1 | 41111855006 | $126.27 | Shop at ECS Tuning | |||||
| 05 | Cloison de separation de coffre | 1 | 41131855008 | $21.97 | arrêté | Shop at ECS Tuning | ||||
| 06 | Plancher de coffre arrière | 1 | 41121862290 | $315.83 | arrêté | Shop at ECS Tuning | ||||
| 07 | Cloison de separation de coffre | 1 | 41131855007 | $21.97 | Shop at ECS Tuning | |||||
| 08 | Butée | 1 | 41121854871 | arrêté | Shop at ECS Tuning | |||||
| 09 | Support de cric | 1 | 41141854867 | $22.60 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
