Plancher de coffre/pieces laterales for BMW 5 Series E12 528i (1979)

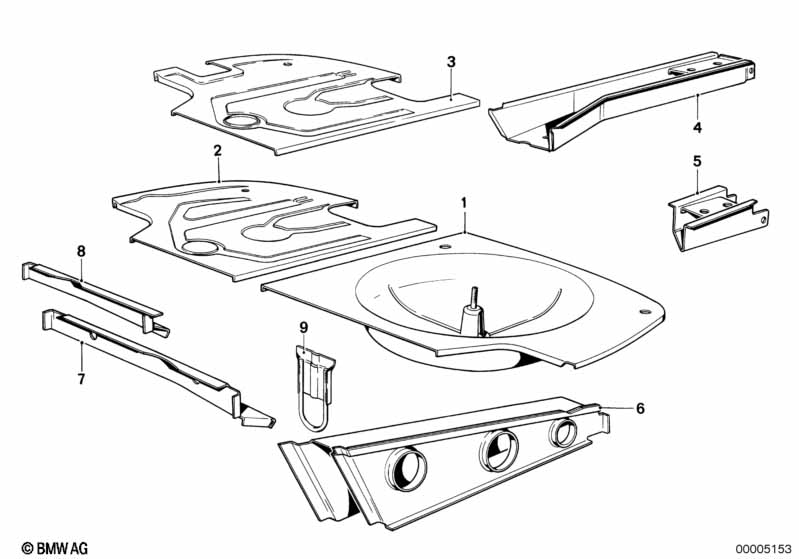

This Plancher de coffre/pieces laterales technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Logement bagages lateral | 1 | 41121833197 | $242.17 | arrêté | Shop at ECS Tuning | ||||
| 03 | Logement bagages lateral | 1 | 09/1976 | 41121870696 | arrêté | Shop at ECS Tuning | ||||
| 04 | Support central | 1 | 41121915748 | $14.17 | arrêté | Shop at ECS Tuning | ||||
| 05 | Support gauche | 1 | 41121834727 | $29.90 | arrêté | Shop at ECS Tuning | ||||
| 05 | Appui droit | 1 | 41121976606 | $14.17 | Shop at ECS Tuning | |||||
| 06 | Cloison de separation de coffre | 1 | 41131834737 | $36.97 | arrêté | Shop at ECS Tuning | ||||
| 06 | Cloison de separation droite | 1 | 09/1976 | 41131848266 | $62.22 | arrêté | Shop at ECS Tuning | |||
| 07 | Traverse gauche | 1 | 41111979033 | $298.30 | Shop at ECS Tuning | |||||
| 08 | Traverse droite | 1 | 41111979034 | $298.30 | arrêté | Shop at ECS Tuning | ||||
| 09 | Support | 1 | 09/1976 | 41141853988 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
