Pièces de plancher de coffre arrière for BMW 5 Series E28 520i (1988)

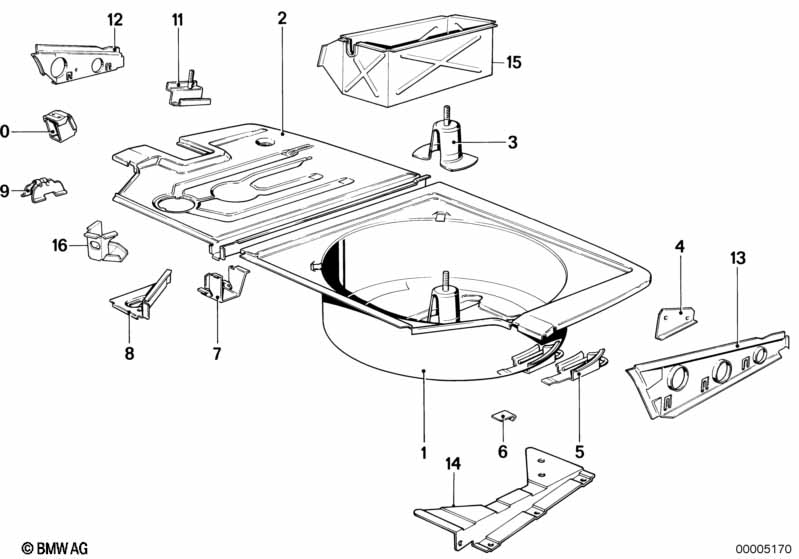

This Pièces de plancher de coffre arrière technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Logement bagages lateral | BASIS | 1 | 41121932991 | $266.72 | arrêté | Shop at ECS Tuning | |||
| 02 | Logement bagages lateral | BASIS | 1 | 41121934418 | $155.12 | arrêté | Shop at ECS Tuning | |||
| 03 | Support de roue de secours | 1 | 41121909076 | $10.25 | arrêté | Shop at ECS Tuning | ||||
| 04 | Support de cric | 1 | 41121826707 | $3.85 | Shop at ECS Tuning | |||||
| 05 | Console de remorquage | 1 | 41121881766 | $31.21 | arrêté | Shop at ECS Tuning | ||||
| 06 | Equerre | 1 | 41121820263 | $11.51 | arrêté | Shop at ECS Tuning | ||||
| 07 | Support reservoir inf.arriere | 1 | 41121820964 | $12.28 | arrêté | Shop at ECS Tuning | ||||
| 08 | Tole de jonction | 1 | 41121831993 | $5.69 | arrêté | Shop at ECS Tuning | ||||
| 09 | Etrier | 1 | 18211246056 | $2.88 | Shop at ECS Tuning | |||||
| 10 | Support avant de reservoir | 1 | 41121848271 | $13.28 | arrêté | Shop at ECS Tuning | ||||
| 11 | Support de cric | 1 | 41121826706 | $6.38 | Shop at ECS Tuning | |||||
| 12 | Cloison de separation droite | 1 | 41131848270 | $27.71 | Shop at ECS Tuning | |||||
| 13 | Paroi de separation gauche | 1 | 41131820497 | $23.40 | Shop at ECS Tuning | |||||
| 13 | Cloison de separation de coffre | 1 | 41132901203 | Shop at ECS Tuning | ||||||
| 16 | Support arriere droit de reservoir | 1 | 41121935879 | $12.14 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
