Revetement d'aile arriere for BMW 7 Series E23 728i (1986)

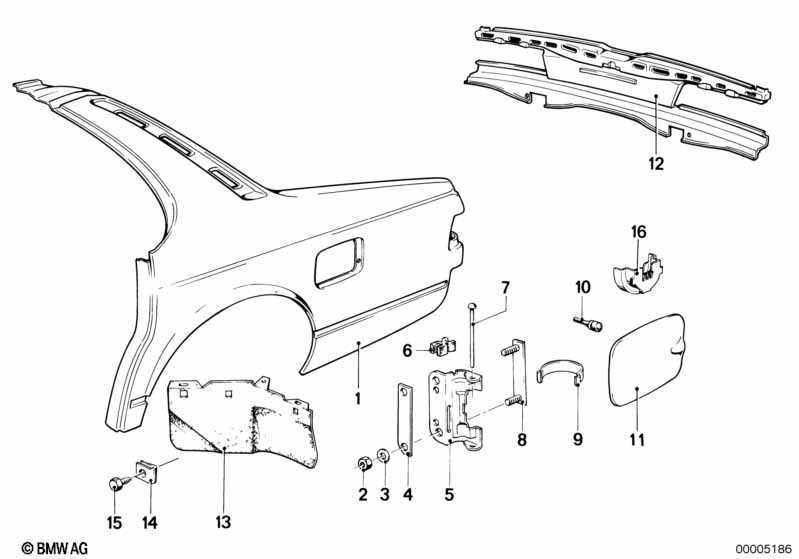

This Revetement d'aile arriere technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aile arrière gauche | 1 | 41351961845 | $792.79 | Shop at ECS Tuning | |||||
| 01 | Aile arrière droite | 1 | 41351961846 | $792.79 | Shop at ECS Tuning | |||||
| 01 | Aile arrière gauche | 1 | 41353905095 | Shop at ECS Tuning | ||||||
| 01 | Aile arrière droite | 1 | 41353905096 | arrêté | Shop at ECS Tuning | |||||
| 02 | Ecrou à six pans | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Plaque d'appui | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Plaque de compensation | 0,5MM | X | 51171852594 | $0.17 | arrêté | Shop at ECS Tuning | |||
| 04 | Plaque de compensation | 1,0MM | X | 51171852595 | $0.17 | Shop at ECS Tuning | ||||
| 05 | Charniere | 1 | 51171846701 | $11.15 | arrêté | Shop at ECS Tuning | ||||
| 06 | Butée | 1 | 51171836476 | $0.18 | arrêté | Shop at ECS Tuning | ||||
| 07 | Goupille de charniere | 1 | 51171829639 | $2.30 | Shop at ECS Tuning | |||||
| 08 | Plaque filetee | 1 | 51211832811 | $6.31 | Shop at ECS Tuning | |||||
| 09 | Ressort | 1 | 51171969235 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Butée élastique | 1 | 51171853772 | $1.52 | Shop at ECS Tuning | |||||
| 11 | Volet de remplissage de réservoir | 1 | 51171848504 | Shop at ECS Tuning | ||||||
| 11 | Volet de remplissage de réservoir | 1 | 51171867746 | $35.15 | arrêté | Shop at ECS Tuning | ||||
| 12 | Tole de fermeture de la carrosserie | 1 | 41341852343 | $269.02 | Shop at ECS Tuning | |||||
| 12 | Tole de fermeture de la carrosserie | 1 | 41342908478 | Shop at ECS Tuning | ||||||
| 13 | Protecteur AR gauche | 1 | 51711886707 | $19.65 | arrêté | Shop at ECS Tuning | ||||
| 13 | Protecteur AR droite | 1 | 51711886708 | $22.45 | arrêté | Shop at ECS Tuning | ||||
| 14 | Ecrou tôlé | ST 4,8-4-ZNS3 | 6 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 15 | Vis à tôle à six pans | ST4,8X13-ZN3 | 6 | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Support de bouchon de reservoir | 1 | 51171923919 | $5.74 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
