Volet avant - Pieces de montage for BMW 5 Series E12 528i (1979)

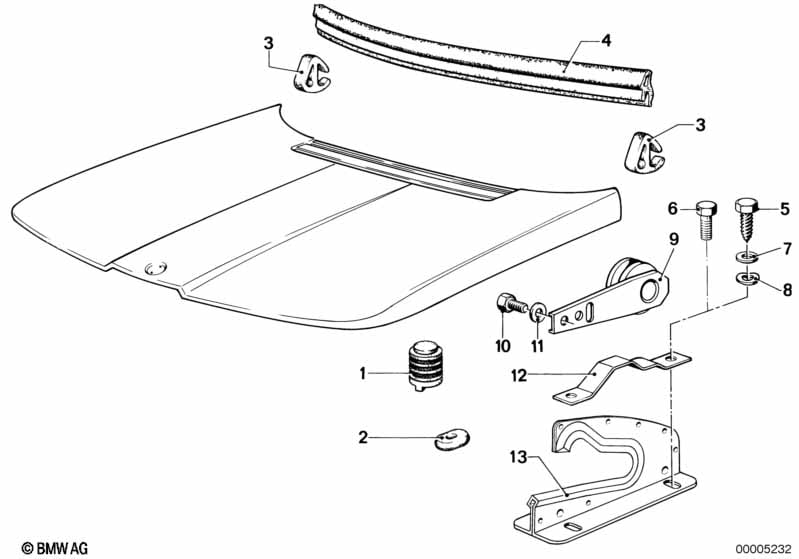

This Volet avant - Pieces de montage technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Butée élastique | 2 | 51231852347 | $2.79 | Shop at ECS Tuning | |||||
| 03 | Butée | 2 | 51231819847 | $1.47 | arrêté | Shop at ECS Tuning | ||||
| 04 | Joint | 1380MM | 1 | 09/1976 | 51231902902 | $21.61 | Shop at ECS Tuning | |||
| 05 | Vis six pans avec rondelle | M6X16-SB-Z3-2 | 8 | 07119915022 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Vis six pans avec rondelle | M6X16-SB-Z3-2 | 8 | 07119915022 | $0.30 | Shop at ECS Tuning | ||||
| 07 | Rondelle élastique noire | B6-ZN | 8 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Plaque d'appui | 5.3-140 HV-ZNS | 8 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Rondelle elastique | B6-ZNS3 | 8 | 07119904496 | $1.78 | arrêté | Shop at ECS Tuning | |||
| 08 | Plaque d'appui | A6,4-200HV-ZNS3 | 8 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Roleau-guid. | 2 | 51231833187 | $20.38 | arrêté | Shop at ECS Tuning | ||||
| 10 | Vis six pans | M8X18 | 4 | 07119913632 | $0.17 | arrêté | Shop at ECS Tuning | |||
| 11 | Rondelle grower | B8 | 4 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Butée | 2 | 51231841360 | $7.71 | Shop at ECS Tuning | |||||
| 13 | Cran d'arret | 2 | 51231833191 | $104.63 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
