Revetement d'aile arriere for BMW 3 Series E36 323ti

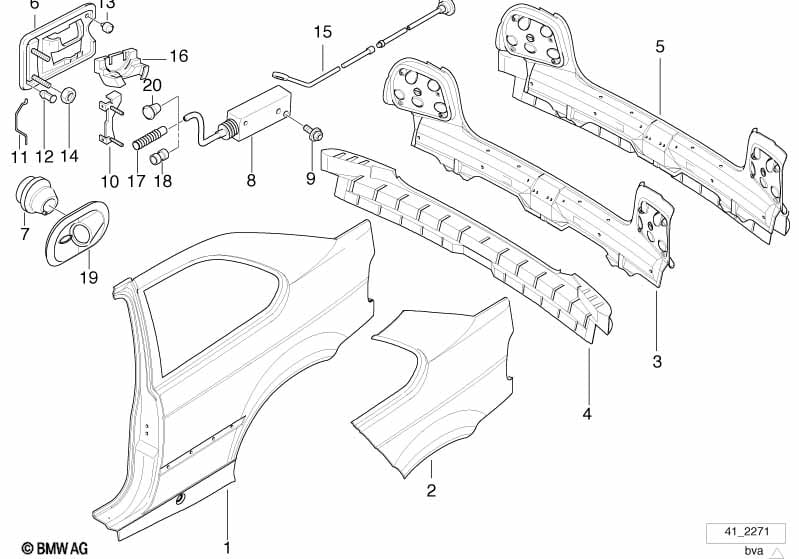

This Revetement d'aile arriere technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aile arrière gauche | ECE | 1 | 41008254623 | $323.64 | Shop at ECS Tuning | ||||
| 01 | Aile arrière droite | ECE | 1 | 41008254624 | $300.02 | Shop at ECS Tuning | ||||
| 02 | Section de l'aile arriere gauche | 1 | 41218191129 | $103.67 | arrêté | Shop at ECS Tuning | ||||
| 02 | Section de l'aile arriere droite | 1 | 41218191130 | $103.67 | arrêté | Shop at ECS Tuning | ||||
| 03 | Revetement interieur de la partie arr. | 1 | 41348191136 | $160.02 | Shop at ECS Tuning | |||||
| 04 | Panneau extérieur de revêtement arrière | 1 | 41348191137 | $103.52 | Shop at ECS Tuning | |||||
| 05 | Revêtement arrière complet | 1 | 41348195667 | $188.24 | Shop at ECS Tuning | |||||
| 06 | Volet de remplissage de réservoir | 1 | 51178202516 | $21.84 | Shop at ECS Tuning | |||||
| 07 | Soufflet en caoutchouc superieur | 1 | 51718146383 | $10.66 | Shop at ECS Tuning | |||||
| 08 | Actionneur trappe de remplissage | 1 | 67116987627 | $57.47 | Shop at ECS Tuning | |||||
| 09 | Vis torx pour matiere plastique | ISA TS5X16 | 2 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Charniere | 1 | 51178151955 | $1.93 | Shop at ECS Tuning | |||||
| 11 | Ressort | 1 | 51171888374 | $0.38 | Shop at ECS Tuning | |||||
| 12 | Butée élastique | 1,5 MM | 2 | 51171911306 | $0.32 | Shop at ECS Tuning | ||||
| 12 | Butée élastique | 1 MM | 2 | 51178156239 | $0.32 | Shop at ECS Tuning | ||||
| 13 | Butée élastique | 1 | 51178153364 | $0.32 | Shop at ECS Tuning | |||||
| 14 | Ecrou à six pans autobloquant | M6 | 2 | 51258184146 | $0.69 | Shop at ECS Tuning | ||||
| 15 | Commande de secours | 1 | 51258191116 | $6.20 | Shop at ECS Tuning | |||||
| 16 | Support de bouchon de reservoir | 1 | 51171923919 | $5.74 | Shop at ECS Tuning | |||||
| 17 | Soufflet | 1 | 51258151799 | $3.77 | Shop at ECS Tuning | |||||
| 18 | Douille | 1 | 51258151536 | $0.53 | Shop at ECS Tuning | |||||
| 19 | Soufflet en caoutchouc inferieur | 1 | 51718189890 | $8.89 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
