Support de châssis avant gauche for BMW 3 Series E46 M3 (2002)

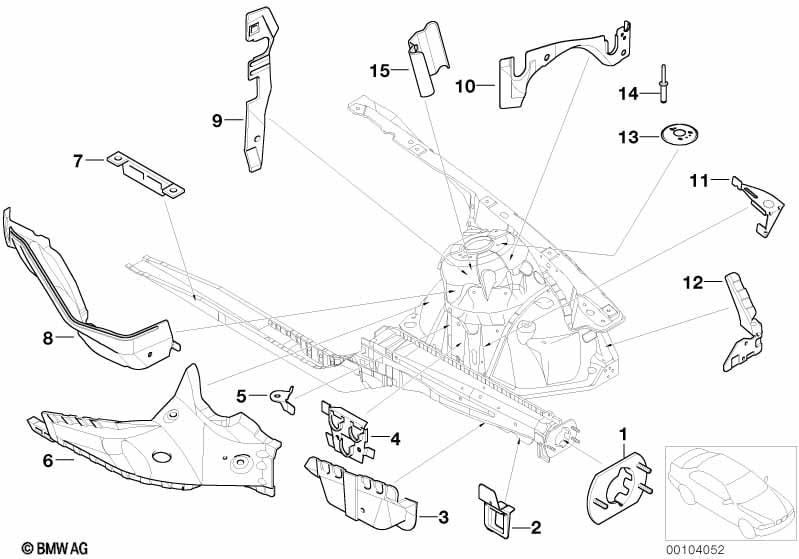

This Support de châssis avant gauche technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support de butoir de pare-chocs gauche | 1 | 41118209651 | $3.80 | Shop at ECS Tuning | |||||
| 02 | Support de fixation de radiateur gauche | 1 | 41118199613 | $7.52 | Shop at ECS Tuning | |||||
| Pour véhicules avec Système 4-roues motrices |
S203A=Non |
|||||||||
| 03 | Support de barre stabilisatrice gauche | 1 | 41118239195 | $10.70 | Shop at ECS Tuning | |||||
| 04 | Support de pompe a eau addit. et soupape | 1 | 41148209658 | $5.10 | Shop at ECS Tuning | |||||
| 05 | Support unite ABS hydraulique | 1 | 41148201492 | $2.05 | Shop at ECS Tuning | |||||
| 06 | Support de tablier gauche | 1 | 41118230525 | $53.05 | Shop at ECS Tuning | |||||
| 07 | Support de filtre à carburant | 1 | 41118209657 | $2.95 | Shop at ECS Tuning | |||||
| 08 | Paroi de séparation compartim.-moteur g. | 1 | 41118230527 | $23.95 | Shop at ECS Tuning | |||||
| 09 | Renforcement de paroi de séparation g. | 1 | 41147000013 | $10.22 | Shop at ECS Tuning | |||||
| 10 | Tôle de fermeture p compartim.moteur g. | 1 | 41148230531 | $11.78 | Shop at ECS Tuning | |||||
| 11 | Support tuyau de frein gauche | 1 | 41148209665 | $4.05 | Shop at ECS Tuning | |||||
| 12 | Support d'aile gauche | 1 | 41148209101 | $10.22 | Shop at ECS Tuning | |||||
