Support de châssis avant droit for BMW 3 Series E46 M3 (2002)

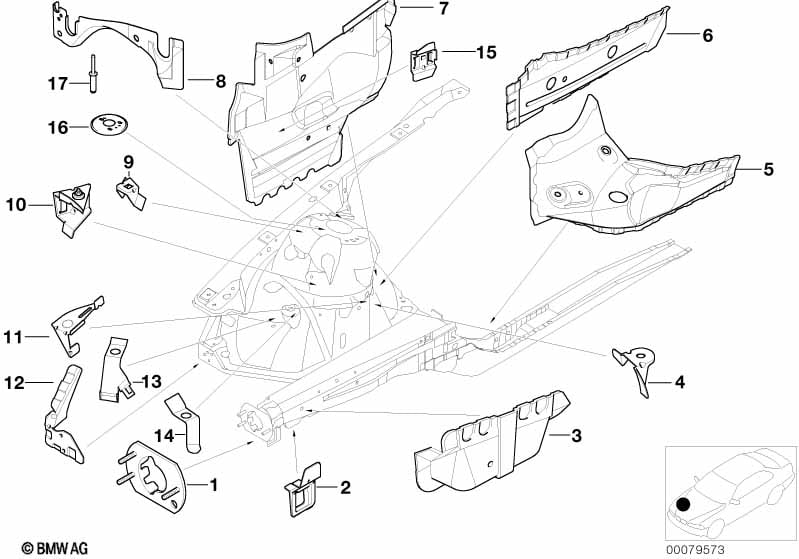

This Support de châssis avant droit technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support de butoir de pare-chocs droit | 1 | 41118209652 | $3.80 | Shop at ECS Tuning | |||||
| 02 | Support de fixation de radiateur droit | 1 | 41118199614 | $7.52 | Shop at ECS Tuning | |||||
| Pour véhicules avec Système 4-roues motrices |
S203A=Non |
|||||||||
| 03 | Support de barre stabilisatrice droite | 1 | 41118239196 | $10.70 | Shop at ECS Tuning | |||||
| 04 | Support ABS+ASC | 1 | 41147893376 | $2.77 | Shop at ECS Tuning | |||||
| 04 | Console p support battérie/chauff.auxil. | 1 | 41148217444 | $3.38 | Shop at ECS Tuning | |||||
| 05 | Support de tablier droite | 1 | 41118230526 | $53.05 | Shop at ECS Tuning | |||||
| 06 | Renforcement de paroi de séparation d. | 1 | 41118230548 | $21.62 | Shop at ECS Tuning | |||||
| 07 | Paroi de séparation compartim.-moteur d. | 1 | 41118230528 | $23.95 | Shop at ECS Tuning | |||||
| 08 | Tôle de fermeture p compartim.moteur dr. | 1 | 41118230532 | $11.78 | Shop at ECS Tuning | |||||
| 09 | Support de réservoir SWA/SRA | 1 | 41148199630 | $2.82 | Shop at ECS Tuning | |||||
| 10 | Support, fiche de diagnostic/DSC | 1 | 06/2000 | 41147026398 | $6.50 | Shop at ECS Tuning | ||||
| 11 | Support tuyau de frein droit | 1 | 41148209666 | $4.05 | Shop at ECS Tuning | |||||
| 12 | Support d'aile droite | 1 | 41148209102 | $10.22 | Shop at ECS Tuning | |||||
| 13 | Support de pompe d'air secondaire av | 1 | 41147894115 | $7.30 | Shop at ECS Tuning | |||||
| 14 | Support de pompe d'air secondaire ar | 1 | 41147894116 | $5.93 | Shop at ECS Tuning | |||||
