Pièces de tablier frontal for BMW 3 Series E46 M3 (2002)

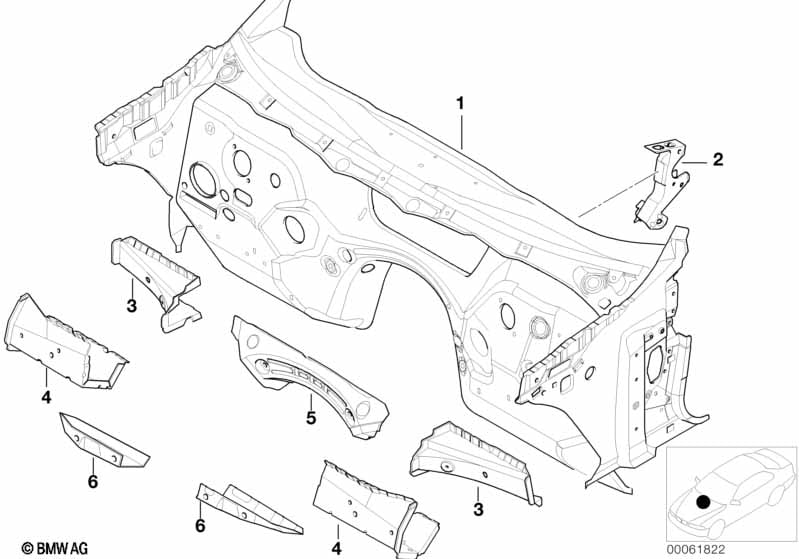

This Pièces de tablier frontal technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | tablier frontal | BASIS | 1 | 41138230518 | $631.00 | arrêté | Shop at ECS Tuning | |||
| uniquement en connexion avec repère 2 | ||||||||||
| 02 | Support de colonne de direction | 1 | 41138230521 | $13.53 | Shop at ECS Tuning | |||||
| 03 | Renforcement de tablier frontal gauche | 1 | 41118239197 | $29.67 | Shop at ECS Tuning | |||||
| 03 | Renforcement de tablier frontal droit | 1 | 41118239198 | $29.67 | Shop at ECS Tuning | |||||
| 04 | Raccord p passage de roue/entrée gauche | 1 | 01/2001 | 41117028595 | $29.10 | Shop at ECS Tuning | ||||
| 04 | Raccord p passage de roue/entrée droite | 1 | 01/2001 | 41117028596 | $29.10 | Shop at ECS Tuning | ||||
| 05 | Support de tablier central | 1 | 41118230553 | $53.05 | Shop at ECS Tuning | |||||
| 06 | Raccord p passage de roue/entrée gauche | 1 | 41117028595 | $29.10 | Shop at ECS Tuning | |||||
| 06 | Raccord p passage de roue/entrée droite | 1 | 41117028596 | $29.10 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
