Pieces de partie avant for BMW 3 Series E46 M3 (2002)

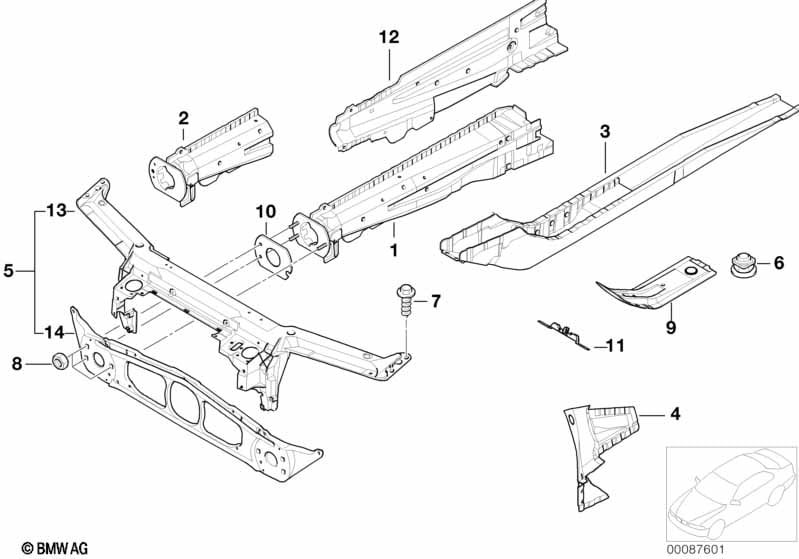

This Pieces de partie avant technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support moteur avant gauche | 1 | 41118234033 | $194.30 | Shop at ECS Tuning | |||||
| 01 | Support moteur avant droit | 1 | 41118234034 | $194.30 | Shop at ECS Tuning | |||||
| 02 | Section du support moteur gauche | 1 | 41118234039 | $169.76 | Shop at ECS Tuning | |||||
| 02 | Section du support moteur droite | 1 | 41118234040 | $169.76 | Shop at ECS Tuning | |||||
| 03 | Support moteur arriere | 2 | 01/2001 | 41117047885 | $174.38 | Shop at ECS Tuning | ||||
| 04 | Support de tablier gauche | 1 | 41118230525 | $53.05 | Shop at ECS Tuning | |||||
| 04 | Support de tablier droite | 1 | 41118230526 | $53.05 | Shop at ECS Tuning | |||||
| 05 | Panneau avant | 1 | 51717111691 | $301.97 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Arrêt gauche | 1 | 51717032053 | $1.92 | Shop at ECS Tuning | |||||
| -- | Butée droite | 1 | 51717032054 | $1.92 | Shop at ECS Tuning | |||||
| -- | Rivet | 2 | 51111964186 | $0.37 | Shop at ECS Tuning | |||||
| 06 | Boulon de mise a la masse | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 06 | Boulon de mise a la masse | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 07 | Vis six pans | M6X20-U2-8.8 | 4 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 07 | Boulon de mise a la masse | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 08 | Ecrou six pans avec plaque | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 09 | Renforcement de support moteur | 2 | 41118223103 | $5.67 | Shop at ECS Tuning | |||||
| 10 | Plaque entretoise | 1.0MM | X | 51718245775 | $3.27 | Shop at ECS Tuning | ||||
| 11 | Pièce moulée support moteur | 2 | 41128235634 | $4.50 | Shop at ECS Tuning | |||||
| 12 | Support moteur gauche exterieur | 1 | 41117029239 | $134.54 | Shop at ECS Tuning | |||||
| 12 | Support moteur droite exterieur | 1 | 41117029240 | $134.54 | Shop at ECS Tuning | |||||
