Volet avant - Pieces de montage for BMW 3 Series E46 M3 (2002)

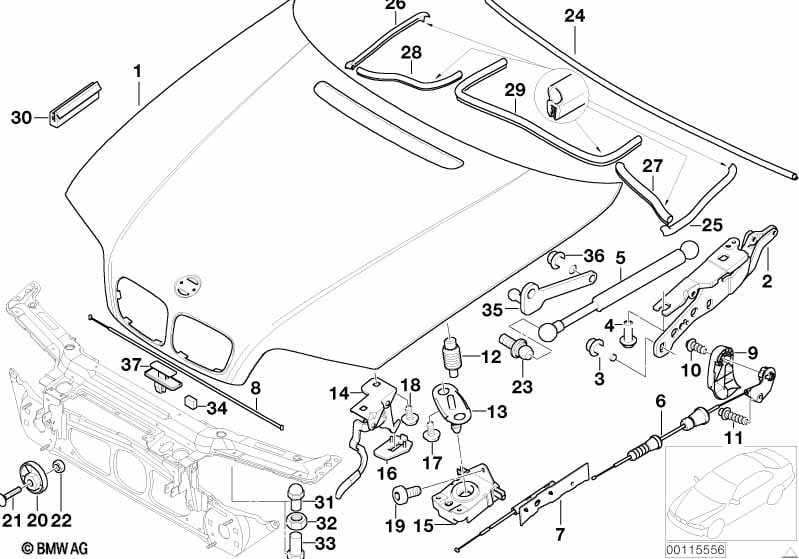

This Volet avant - Pieces de montage technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Capôt avant | 1 | 41617894223 | $1025.75 | Shop at ECS Tuning | |||||
| 02 | Charniere de capot moteur gauche | 1 | 41617028577 | $46.82 | Shop at ECS Tuning | |||||
| 02 | Charniere de capot moteur droite | 1 | 41617028578 | $46.82 | Shop at ECS Tuning | |||||
| 03 | Vis six pans avec rondelle | M8X25 | 2 | 07147031946 | $0.82 | Shop at ECS Tuning | ||||
| 04 | Vis six pans | 2 | 51213449383 | Shop at ECS Tuning | ||||||
| 05 | Ressort pneumatique | M3 - 380N | 2 | 51237893236 | $37.68 | Shop at ECS Tuning | ||||
| 06 | Commande du capot avant | 1 | 51238208442 | $25.95 | Shop at ECS Tuning | |||||
| 07 | Cable a tirette latéral | 1 | 51238218859 | $22.07 | Shop at ECS Tuning | |||||
| 08 | Cable bowden central | 1 | 51238208630 | $15.37 | Shop at ECS Tuning | |||||
| 09 | Levier de commande du capot avant | 1 | 51238223163 | $3.47 | Shop at ECS Tuning | |||||
| 10 | Vis de crosse pour matiere plastique | TS5X25-ZNNID-SW | 1 | 07146959925 | $0.29 | Shop at ECS Tuning | ||||
| 11 | Vis a tole tête bombee | ISA ST4.2X13 | 1 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Butée élastique | 2 | 51248254063 | $1.35 | Shop at ECS Tuning | |||||
| 13 | Partie supérieure de serrure | 2 | 51238229807 | $9.28 | Shop at ECS Tuning | |||||
| 14 | Crochet | 1 | 51238238459 | $21.07 | Shop at ECS Tuning | |||||
| 15 | Partie inf.de fermeture capot avant | 2 | 51238203859 | $18.13 | Shop at ECS Tuning | |||||
| Pour véhicules avec Boîte M séquentielle Drivelogic |
S793A=Oui |
|||||||||
| 15 | Partie inf.de fermeture capot avant | 2 | 51237893575 | $81.22 | Shop at ECS Tuning | |||||
| 16 | Palier d'appui de crochet | 1 | 51238229796 | $1.98 | Shop at ECS Tuning | |||||
| 17 | Vis à tête bombée | M6 | 4 | 51237203737 | Shop at ECS Tuning | |||||
| 18 | Vis torx avec disque | 2 | 51233447111 | $1.14 | Shop at ECS Tuning | |||||
| 19 | Vis torx avec disque | M6X12 | 6 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 20 | Arrêt gauche | 1 | 04/2001 | 51717032053 | $1.92 | Shop at ECS Tuning | ||||
| 20 | Butée droite | 1 | 04/2001 | 51717032054 | $1.92 | Shop at ECS Tuning | ||||
| 21 | Rivet | 2 | 04/2001 | 51111964186 | $0.37 | Shop at ECS Tuning | ||||
| 23 | Pivot spherique | M8X13,5MM | 2 | 51247010221 | $2.03 | Shop at ECS Tuning | ||||
| 24 | Joint arrière de capot avant | 1 | 51718215919 | $14.96 | Shop at ECS Tuning | |||||
| 25 | Joint gauche de capot avant | 1 | 51718215893 | $14.96 | Shop at ECS Tuning | |||||
| 26 | Joint avant droit de capot avant | 1 | 51718215894 | $14.96 | Shop at ECS Tuning | |||||
| 27 | Joint de compartiment moteur gauche | 1 | 51718215913 | $24.52 | Shop at ECS Tuning | |||||
| 28 | Joint de compartiment moteur droit | 1 | 51718215914 | $24.52 | Shop at ECS Tuning | |||||
| 29 | Joint de boîtier de filtre | 1 | 51718215915 | $19.68 | Shop at ECS Tuning | |||||
| 30 | Tampon | 2 | 51238247699 | $1.02 | Shop at ECS Tuning | |||||
| 35 | Logement de ressort pneumatique gauche | 1 | 41617895765 | $8.30 | Shop at ECS Tuning | |||||
| 35 | Logement de ressort pneumatique droit | 1 | 41617895766 | $8.30 | Shop at ECS Tuning | |||||
| 36 | Vis six pans avec rondelle | M8X25 | 2 | 07147031946 | $0.82 | Shop at ECS Tuning | ||||
| 37 | Rivet | 2 | 04/2001 | 51247035332 | $0.52 | Shop at ECS Tuning | ||||
