Pavillon for BMW 3 Series E46 M3 (2002)

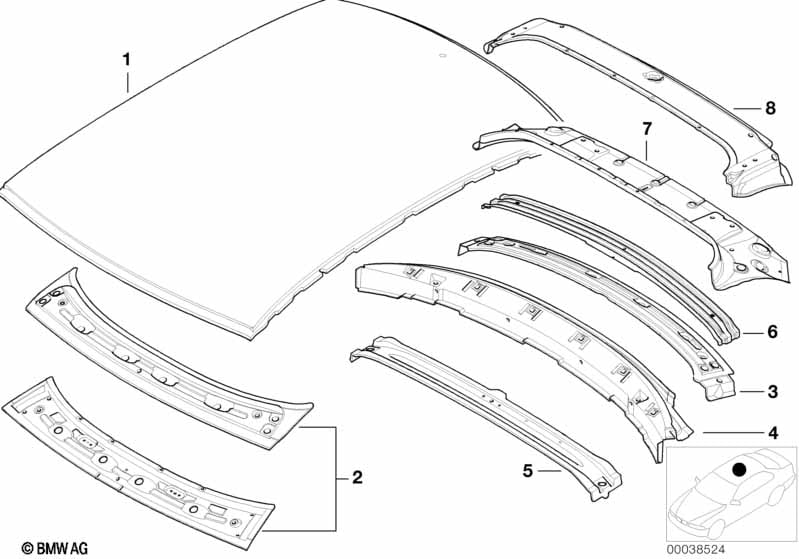

This Pavillon technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pellicule de toit p toit ouvr.inclinable | 1 | 41318239488 | $900.44 | Shop at ECS Tuning | |||||
| 01 | Pellicule exterieure de toit | 1 | 41318242962 | $758.87 | Shop at ECS Tuning | |||||
| 02 | Auvent superieur | 1 | 41328240205 | $65.22 | Shop at ECS Tuning | |||||
| 03 | Cadre de lunette arriere superieur | 1 | 41328240201 | $41.24 | Shop at ECS Tuning | |||||
| 04 | Cadre inf. de la lunette arr. | 1 | 41328240203 | $60.29 | Shop at ECS Tuning | |||||
| 05 | Arceau de pavillon | 1 | 41328242075 | $76.19 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 Pavillon?
- This technical diagram illustrates the Pavillon within the Tôlerie - Carrosserie group for the 3 Series E46 M3 produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Pellicule de toit p toit ouvr.inclinable (Part #41318239488).
- Which models use the hardware listed in this Pavillon?
- The hardware and components featured in the Pavillon are specific to the 3 Series E46 M3 produced during 2002. These technical specifications ensure that parts like the Pellicule de toit p toit ouvr.inclinable (41318239488) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pavillon assembly?
- Each item in the Pavillon corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the Pellicule de toit p toit ouvr.inclinable by locating its position on the schematic, which then links to the official BMW part number 41318239488 for the Tôlerie - Carrosserie section.
