Cloison de separation de coffre for BMW 3 Series E46 M3 (2002)

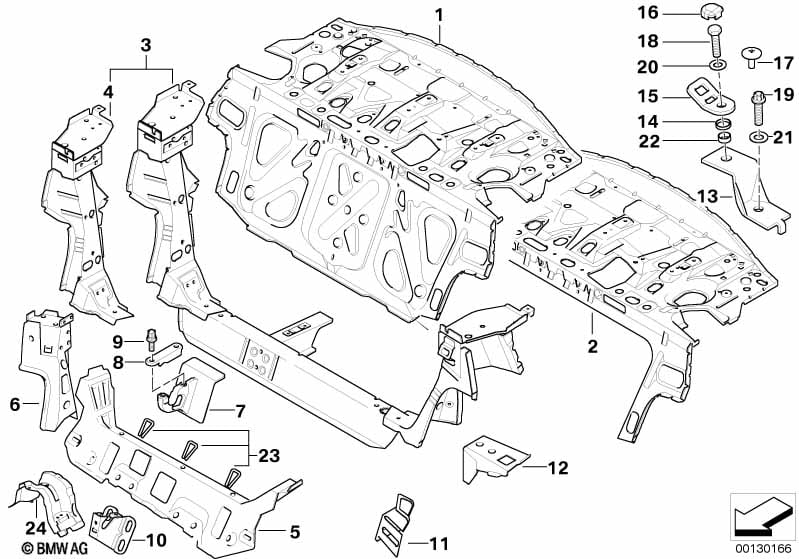

This Cloison de separation de coffre technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Paroi séparat.coffre arr banquett.rabatt | 1 | 41138240629 | $621.97 | arrêté | Shop at ECS Tuning | ||||
| 08 | Etrier de fermeture | 1 | 51718244931 | $4.62 | Shop at ECS Tuning | |||||
| 09 | Vis torx avec disque | 2 | 52207000957 | $0.45 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Banquette arriere rabattable |
S465A=Oui |
|||||||||
| 10 | Support du dossier central | 1 | 41128240628 | $5.98 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Vis six pans avec rondelle | M8X25 | 4 | 07147031946 | $0.82 | Shop at ECS Tuning | ||||
| 11 | Support dossier gauche exterieure | 1 | 41118240141 | $7.52 | arrêté | Shop at ECS Tuning | ||||
| 11 | Support dossier droite exterieure | 1 | 41118240142 | $7.52 | arrêté | Shop at ECS Tuning | ||||
| 24 | Console palier central arbre transm. | 1 | 41123405031 | $43.41 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
