Hayon AR, charnière, serrure for BMW 1500-2000CS 1800 (1971)

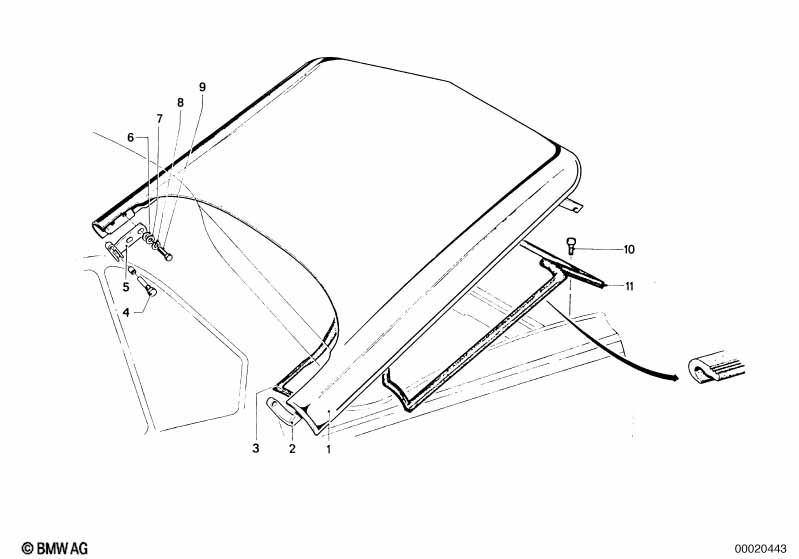

This Hayon AR, charnière, serrure technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Capôt de coffre arrière | 1 | 41621802959 | arrêté | Shop at ECS Tuning | |||||
| 02 | Etrier | 1 | 41625676117 | arrêté | Shop at ECS Tuning | |||||
| 03 | Joint | 1 | 51245776163 | Shop at ECS Tuning | ||||||
| 03 | Joint | 1 | 51245776164 | Shop at ECS Tuning | ||||||
| 04 | Boulon | 2 | 41625676119 | arrêté | Shop at ECS Tuning | |||||
| 05 | Etrier | 1 | 41625676118 | arrêté | Shop at ECS Tuning | |||||
| 07 | Plaque d'appui | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 08 | Rondelle grower | B8 | 4 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Vis six pans | M8X25-8.8-ZNNIV | 4 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 10 | Tampon | 2 | 41625081714 | arrêté | Shop at ECS Tuning | |||||
| 11 | Joint | 1 | 51245676161 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Hayon AR, charnière, serrure?
- This technical diagram illustrates the Hayon AR, charnière, serrure within the Tôlerie - Carrosserie group for the 1500-2000CS 1800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Capôt de coffre arrière (Part #41621802959).
- Which models use the hardware listed in this Hayon AR, charnière, serrure?
- The hardware and components featured in the Hayon AR, charnière, serrure are specific to the 1500-2000CS 1800 produced during 1971. These technical specifications ensure that parts like the Capôt de coffre arrière (41621802959) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hayon AR, charnière, serrure assembly?
- Each item in the Hayon AR, charnière, serrure corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Capôt de coffre arrière by locating its position on the schematic, which then links to the official BMW part number 41621802959 for the Tôlerie - Carrosserie section.
