Cadre latéral for BMW 3 Series E46 M3 (2002)

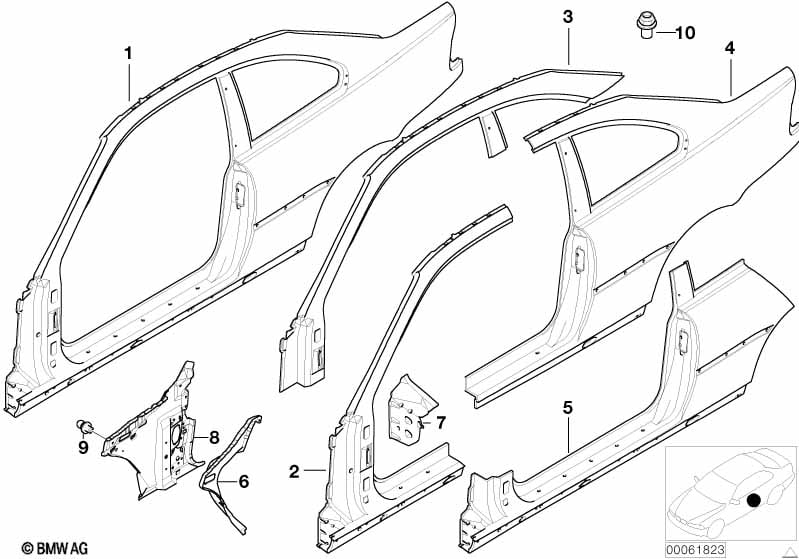

This Cadre latéral technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carcasse latérale gauche | 1 | 41217896145 | $1148.89 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 01 | Carcasse latérale droite | 1 | 41217896146 | $1148.89 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 02 | Montant A extérieur gauche | 1 | 41217896141 | $603.43 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 02 | Montant A extérieur droit | 1 | 41217896142 | $603.43 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 03 | Cadre de toit gauche | 1 | 41218243103 | $430.25 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| 03 | Cadre droit de pavillon | 1 | 41218243104 | $430.25 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Ecrou a brides | M10 | 2 | 41218227672 | $1.96 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 04 | Aile arrière gauche | 1 | 41217890689 | $500.05 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 04 | Aile arrière droite | 1 | 41217890690 | $500.05 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 05 | Montant B avec marche-pied gauche | 1 | 41217896143 | $529.37 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 05 | Montant B avec marche-pied droit | 1 | 41217896144 | $529.37 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 06 | Tole de connex.p.cadre lateral gauche | 1 | 41218228243 | $55.70 | Shop at ECS Tuning | |||||
| 06 | Tole de connex.p.cadre lateral droit | 1 | 41218228244 | $55.70 | Shop at ECS Tuning | |||||
| 07 | Tole de fermeture montant avant gauche | 1 | 41217022409 | $9.79 | Shop at ECS Tuning | |||||
| 07 | Tole de fermeture colonne avant droite | 1 | 41217022410 | $9.79 | Shop at ECS Tuning | |||||
| 08 | Montant A intérieur gauche | 1 | 41138230551 | $110.58 | Shop at ECS Tuning | |||||
| 08 | Montant A intérieur droit | 1 | 41138245120 | $110.58 | Shop at ECS Tuning | |||||
| 09 | Pivot spherique | M8X13,5MM | 2 | 51247010221 | $2.03 | Shop at ECS Tuning | ||||
| Plaque support pour Dispositif de transport sur toit |
||||||||||
| 10 | Ergot filete | M10/M6 | 4 | 41318199941 | $3.48 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
