Pièces de carcasse latérale for BMW 3 Series E46 M3 (2002)

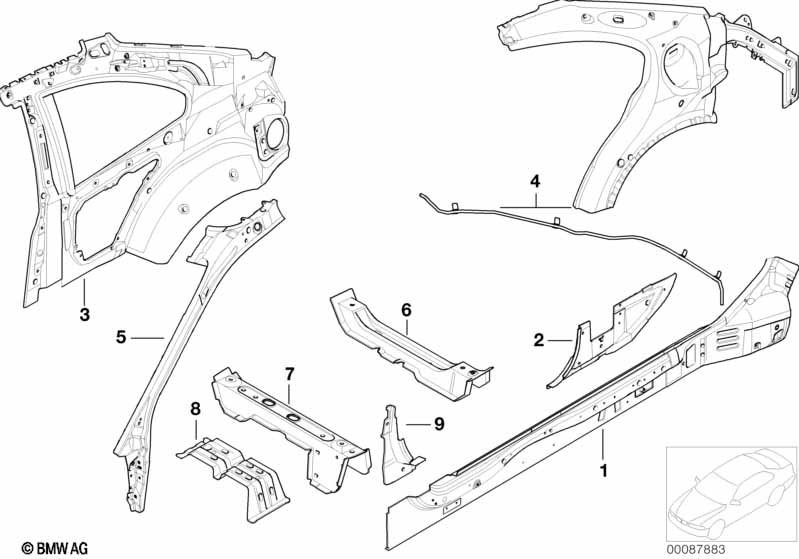

This Pièces de carcasse latérale technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Longeron gauche | 1 | 41117114808 | $112.49 | Shop at ECS Tuning | |||||
| 01 | Longeron droite | 1 | 41117114809 | $112.49 | Shop at ECS Tuning | |||||
| 02 | Renforcement d'entrée arrière gauche | 1 | 41118242065 | $29.10 | Shop at ECS Tuning | |||||
| 02 | Renforcement d'entrée arrière droit | 1 | 41118242066 | $29.10 | Shop at ECS Tuning | |||||
| 03 | Cadre latéral intérieur gauche | 1 | 41217890677 | $462.36 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| 03 | Cadre latéral intérieur droit | 1 | 41217890678 | $462.36 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Ecrou a brides | M10 | 1 | 41218227672 | $1.96 | Shop at ECS Tuning | ||||
| POUR VOITURES AVEC ET SANS TOIT OUVRANT INCLINABLE |
||||||||||
| 04 | Montant C exterieur gauche | 1 | 41212695461 | $181.92 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| 04 | Montant C exterieur droite | 1 | 41212695462 | $181.92 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Tuyau d'évacuation | L=2M | 1 | 54108261716 | $28.16 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| -- | Ecrou a brides | M10 | 1 | 41218227672 | $1.96 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 05 | Auvent interieur gauche | 1 | 41218242209 | $130.12 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| 05 | Auvent interieur droite | 1 | 41218242210 | $130.12 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Tuyau d'évacuation | L=2M | 1 | 54108261716 | $28.16 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 06 | Console siege arriere gauche | 1 | 41118233493 | $43.41 | arrêté | Shop at ECS Tuning | ||||
| 06 | Console siege arriere droit | 1 | 41118233494 | $43.41 | arrêté | Shop at ECS Tuning | ||||
| 07 | Console siege avant gauche | 1 | 41118239493 | $43.41 | arrêté | Shop at ECS Tuning | ||||
| 07 | Console siege avant droit | 1 | 41118239494 | $43.41 | arrêté | Shop at ECS Tuning | ||||
| 08 | Tole de fermeture gauche | 1 | 41117037745 | $17.35 | arrêté | Shop at ECS Tuning | ||||
| 08 | Tole de fermeture droite | 1 | 41117037746 | $17.35 | arrêté | Shop at ECS Tuning | ||||
| 09 | Renforcement de montant A intér. gauche | 1 | 41117011527 | $10.70 | Shop at ECS Tuning | |||||
| 09 | Renforcement de montant A intér. droit | 1 | 41117011528 | $10.70 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
