Matériau insonoris. de cavité/cadre lat. for BMW 3 Series E46 M3 (2002)

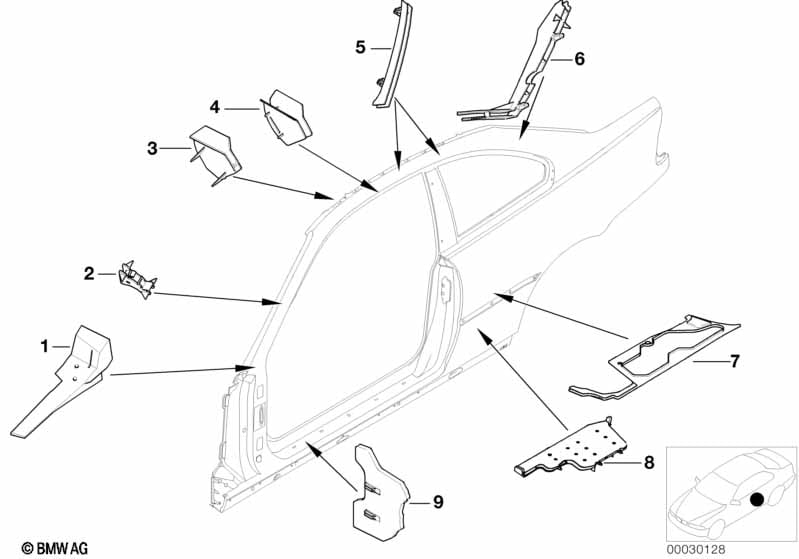

This Matériau insonoris. de cavité/cadre lat. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| POUR VOITURES AVEC ET SANS TOIT OUVRANT INCLINABLE |
||||||||||
| 01 | Pièce moulée montant A gauche | 1 | 41218238505 | $6.37 | Shop at ECS Tuning | |||||
| 01 | Pièce moulée montant A droit | 1 | 41218238506 | $6.37 | Shop at ECS Tuning | |||||
| 02 | Pièce moulée auvent latéral | 1 | 41218215730 | $6.21 | Shop at ECS Tuning | |||||
| 03 | Pièce moulée cadre de toit AV | 1 | 41218208548 | $2.81 | arrêté | Shop at ECS Tuning | ||||
| 04 | Piece moulee de cadre de toit centrale | 2 | 41218226514 | $6.02 | Shop at ECS Tuning | |||||
| 05 | Pièce moulée montant C, interieur | 1 | 41218208637 | $6.75 | Shop at ECS Tuning | |||||
| POUR VOITURES AVEC ET SANS TOIT OUVRANT INCLINABLE |
||||||||||
| 06 | Pièce moulée p montant C extérieure g. | 1 | 41218208591 | $8.02 | Shop at ECS Tuning | |||||
| 06 | Pièce moulée p montant C, extérieure dr. | 1 | 41218208592 | $8.02 | Shop at ECS Tuning | |||||
| 07 | Pièce moulée,aile / montant B gauche | 1 | 41212694025 | $16.62 | Shop at ECS Tuning | |||||
| 07 | Pièce moulée,aile / montant B droit | 1 | 41212694026 | $16.62 | Shop at ECS Tuning | |||||
| 08 | Pièce moulée p l'entrée arrière | 2 | 41218230515 | $17.22 | Shop at ECS Tuning | |||||
| 09 | Pièce moulée p l'entrée avant | 1 | 41218208594 | $11.26 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
