Revetement d'aile arriere for BMW 3 Series E46 M3 (2002)

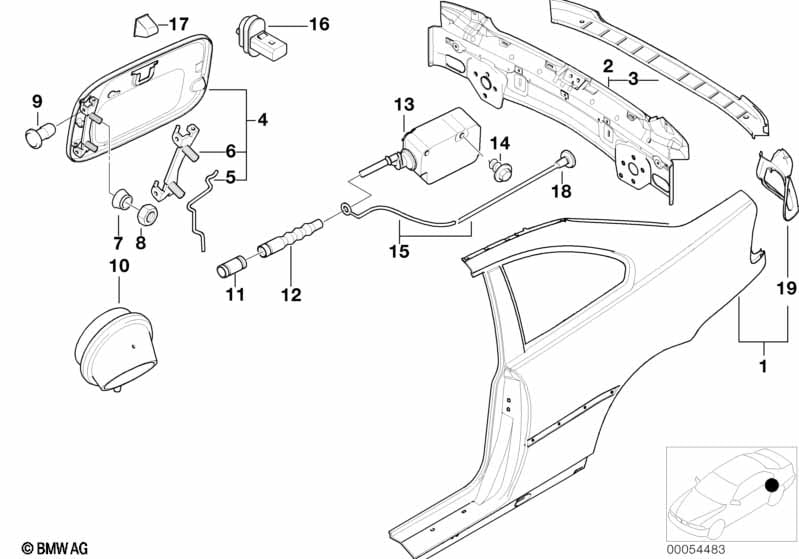

This Revetement d'aile arriere technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aile arrière gauche | 1 | 41217890689 | $500.05 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 01 | Aile arrière droite | 1 | 41217890690 | $500.05 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec PIECE MOULEE |
||||||||||
| 02 | Revêtement arrière complet | 1 | 41347130268 | $210.38 | Shop at ECS Tuning | |||||
| 03 | Panneau extérieur de revêtement arrière | 1 | 41347130269 | $115.73 | Shop at ECS Tuning | |||||
| 04 | Volet de remplissage de réservoir | GRUNDIERT | 1 | 51172695524 | $37.48 | Shop at ECS Tuning | ||||
| 05 | Ressort | 1 | 51171888374 | $0.38 | Shop at ECS Tuning | |||||
| 06 | Charniere | 1 | 51172695527 | $1.97 | Shop at ECS Tuning | |||||
| 07 | Douille d'ecartement | 2 | 51171888394 | $1.82 | Shop at ECS Tuning | |||||
| 08 | Ecrou à six pans | M6-8-ZNFE | 2 | 07119901721 | $0.13 | Shop at ECS Tuning | ||||
| 09 | Butée élastique | 1,5 MM | 2 | 51171911306 | $0.32 | Shop at ECS Tuning | ||||
| 09 | Butée élastique | 1 MM | 2 | 51178156239 | $0.32 | Shop at ECS Tuning | ||||
| 10 | Pot de remplissage | 1 | 51718208646 | $14.42 | Shop at ECS Tuning | |||||
| 11 | Douille | 1 | 51258151536 | $0.53 | Shop at ECS Tuning | |||||
| 12 | Soufflet | 1 | 51258151799 | $3.77 | Shop at ECS Tuning | |||||
| 13 | Actionneur trappe de remplissage | 1 | 03/2003 | 67116988090 | $57.47 | Shop at ECS Tuning | ||||
| 14 | Vis torx pour matiere plastique | ISA TS5X16 | 2 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Bande de tirage de commande de secours | 1 | 51258234140 | $1.23 | Shop at ECS Tuning | |||||
| 16 | Butée élastique avec éjecteur | 1 | 51178228939 | $7.63 | Shop at ECS Tuning | |||||
| 17 | Cache | 1 | 51171928699 | $0.62 | Shop at ECS Tuning | |||||
| 18 | Commande de secours | 1 | 51258234143 | $0.93 | Shop at ECS Tuning | |||||
| 19 | Pot feux arrière, gauche | 1 | 41217021957 | $17.43 | Shop at ECS Tuning | |||||
| 19 | Pot feux arrière, droit | 1 | 41217021958 | $17.43 | Shop at ECS Tuning | |||||
