Joint de porte avant for BMW 3 Series E46 M3 (2002)

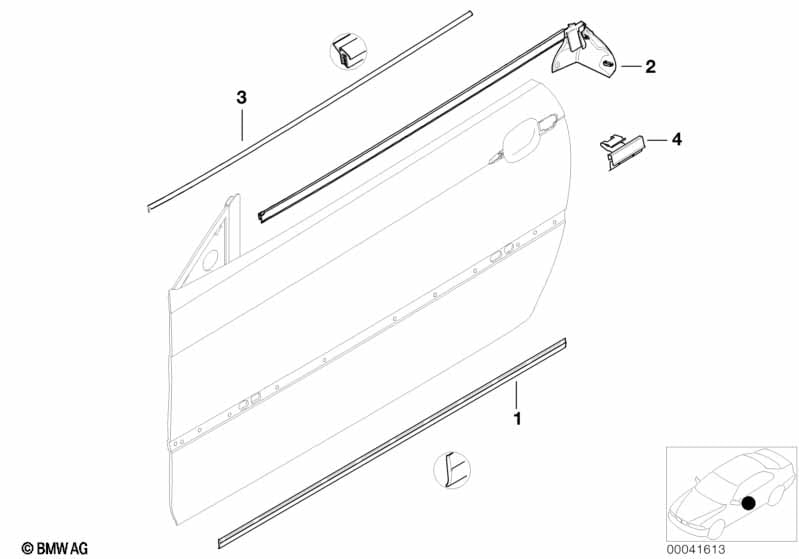

This Joint de porte avant technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint de porte/entrée avant | 2 | 51328194721 | $18.89 | Shop at ECS Tuning | |||||
| 02 | Recouvrem.puits d.vitre interieur gauche | 1 | 51328194731 | $49.92 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| 02 | Recouvrem.puits d.vitre interieur droite | 1 | 51328194732 | $49.92 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Bouchon | D=4,00 MM | 1 | 51718195651 | $0.26 | Shop at ECS Tuning | ||||
| 03 | Cache logement ext. gauche | GLANZSCHWARZ | 1 | 51327890453 | $72.55 | Shop at ECS Tuning | ||||
| 03 | Cache logement ext. droit | GLANZSCHWARZ | 1 | 51327890454 | $72.55 | Shop at ECS Tuning | ||||
| 03 | Cache logement ext. gauche | SCHWARZ | 1 | 51328227625 | $26.92 | Shop at ECS Tuning | ||||
| 03 | Cache logement ext. droit | SCHWARZ | 1 | 51328227626 | $26.92 | Shop at ECS Tuning | ||||
| 04 | Agrafe de appui de porte | 12 | 07149149284 | $0.66 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 Joint de porte avant?
- This technical diagram illustrates the Joint de porte avant within the Tôlerie - Carrosserie group for the 3 Series E46 M3 produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Joint de porte/entrée avant (Part #51328194721).
- Which models use the hardware listed in this Joint de porte avant?
- The hardware and components featured in the Joint de porte avant are specific to the 3 Series E46 M3 produced during 2002. These technical specifications ensure that parts like the Joint de porte/entrée avant (51328194721) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Joint de porte avant assembly?
- Each item in the Joint de porte avant corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the Joint de porte/entrée avant by locating its position on the schematic, which then links to the official BMW part number 51328194721 for the Tôlerie - Carrosserie section.
