Passage de roue ar/elements de plancher for BMW 3 Series E46 M3 (2002)

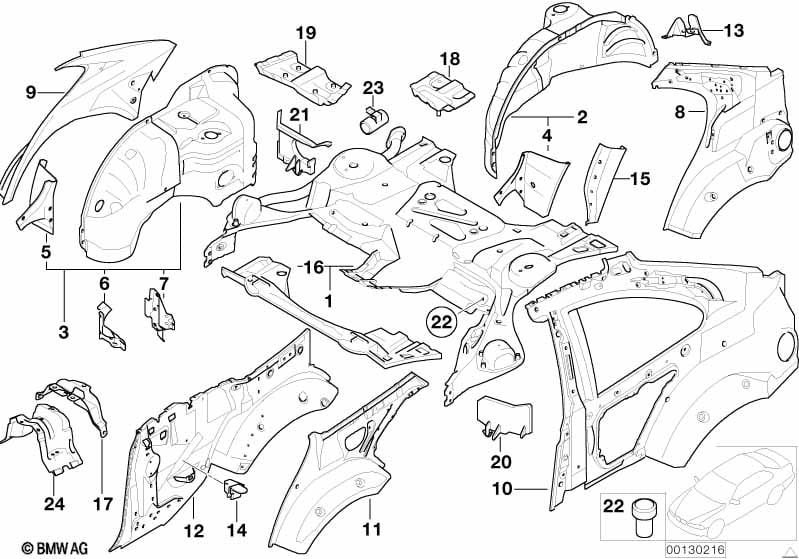

This Passage de roue ar/elements de plancher technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| A monter dans M3 o M3CSL enlevez la masse d'amortisseur |
||||||||||
| 01 | Pièce de rép.,élément support essieu AR | 1 | 41117000246 | $535.37 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec Pos. 23 |
||||||||||
| 02 | Passage de roue ar, moitié intérieure g | 1 | 41148231757 | $226.87 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec Pos. 15 |
||||||||||
| 03 | Passage de roue ar, moitié intérieure d | 1 | 41148231758 | $226.87 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec Pos. 15 |
||||||||||
| 04 | Tole de fermeture gauche | 1 | 41148245733 | $18.78 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec Pos. 15 |
||||||||||
| 05 | Tole de fermeture droite | 1 | 41148245734 | $18.78 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec Pos. 15 |
||||||||||
| 06 | Support réservoir d'expansion | 1 | 41148196386 | $3.08 | Shop at ECS Tuning | |||||
| 07 | Support de fixation de batterie | 1 | 09/2000 | 41007042349 | $2.85 | Shop at ECS Tuning | ||||
| 10 | Cadre latéral intérieur gauche | 1 | 41217890677 | $462.36 | Shop at ECS Tuning | |||||
| 10 | Cadre latéral intérieur droit | 1 | 41217890678 | $462.36 | Shop at ECS Tuning | |||||
| 15 | Pièce supér., tôle de fermeture gauche | 1 | 41142497583 | $7.15 | Shop at ECS Tuning | |||||
| 15 | Pièce supér., tôle de fermeture droite | 1 | 41142497584 | $7.15 | Shop at ECS Tuning | |||||
| 16 | Pièce de rép.,élément support essieu AR | 1 | 41117000246 | $535.37 | arrêté | Shop at ECS Tuning | ||||
| 17 | Support p palier de bras de commande | 1 | 41128246251 | $3.23 | Shop at ECS Tuning | |||||
| 23 | Pièce moulée p support essieu AR droite | 2 | 41117023994 | $3.03 | Shop at ECS Tuning | |||||
| 24 | Console palier central arbre transm. | 1 | 41123405031 | $43.41 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
