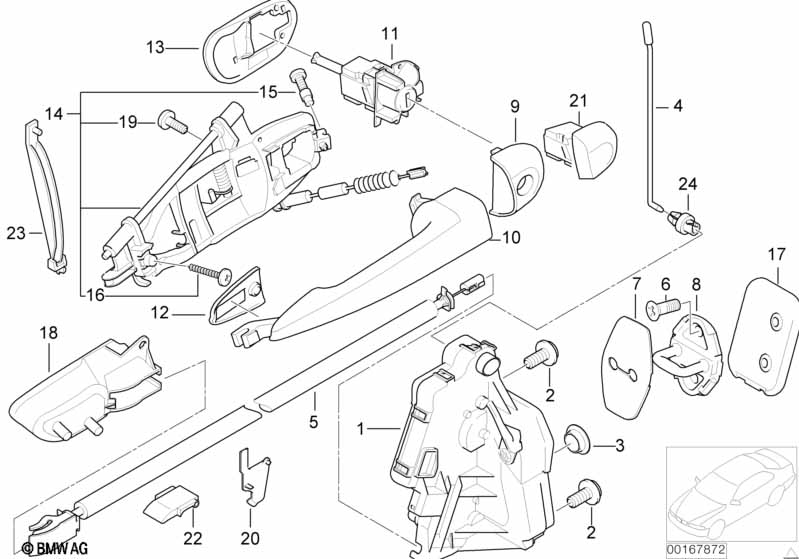

Poignee de porte av pivot. (A par 09/00) for BMW 3 Series E46 M3 (2002)
This Poignee de porte av pivot. (A par 09/00) technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| NE CONVENANT QU'AVEC COTE PASSAGER | ||||||||||
| 01 | Serrure de porte et servomoteur droit | 1 | 09/2000 | 51217011250 | $130.07 | Shop at ECS Tuning | ||||
| NE CONVENANT QU'AVEC COTE CONDUCTEUR | ||||||||||
| 01 | Serrure de porte et servomoteur gauche | 1 | 09/2000 | 51217011247 | $130.07 | Shop at ECS Tuning | ||||
| 02 | Vis torx avec disque | M6X12 | 6 | 09/2000 | 51219130334 | $0.39 | Shop at ECS Tuning | |||
| 03 | Bouchon | D=8MM | 2 | 09/2000 | 51218235768 | $0.39 | Shop at ECS Tuning | |||
| 04 | Tringle de commande gauche | 1 | 09/2000 | 51218254087 | $2.60 | Shop at ECS Tuning | ||||
| 04 | Tringle de commande droite | 1 | 09/2000 | 51218254088 | $2.60 | Shop at ECS Tuning | ||||
| 05 | Câble à tirette ouvre-porte | 2 | 09/2000 | 51218221519 | $7.82 | Shop at ECS Tuning | ||||
| 06 | Vis torx a tete noyee | M8X18 | 4 | 09/2000 | 51211928850 | $0.52 | Shop at ECS Tuning | |||
| 07 | Cache d'étrier de fermeture | 2 | 09/2000 | 51218226591 | $2.75 | Shop at ECS Tuning | ||||
| 08 | Etrier de fermeture | 2 | 09/2000 | 51218221484 | $16.32 | Shop at ECS Tuning | ||||
| NE CONVENANT QU'AVEC COTE CONDUCTEUR | ||||||||||
| 09 | Recouvrement chromé gauche | CHROM | 1 | 09/2000 | 51217002279 | $10.37 | arrêté | Shop at ECS Tuning | ||
| 09 | Cache de cyl. serrure gauche en apprêt | 1 | 09/2000 | 51217002281 | $7.59 | Shop at ECS Tuning | ||||
| 09 | Cache de cyl. serrure gauche peint | CODE - UNI/MET. | 1 | 09/2000 | 51210018019 | arrêté | Shop at ECS Tuning | |||
| Indiquer code couleur à la commande | ||||||||||
| 10 | Support de poignée chromé gauche | CHROM | 1 | 09/2000 | 51217002269 | $33.31 | Shop at ECS Tuning | |||
| 10 | Support de poignée chromé droit | CHROM | 1 | 09/2000 | 51217002270 | $33.31 | Shop at ECS Tuning | |||
| 10 | Support de poignée en apprêt gauche | 1 | 09/2000 | 51217002271 | $26.36 | Shop at ECS Tuning | ||||
| 10 | Support de poignée en apprêt droit | 1 | 09/2000 | 51217002272 | $26.36 | Shop at ECS Tuning | ||||
| 10 | Poignée peinte à gauche | CODE - UNI/MET. | 1 | 09/2000 | 51210018011 | $189.72 | arrêté | Shop at ECS Tuning | ||
| Indiquer code couleur à la commande | ||||||||||
| 10 | Poignée peinte à droite | CODE - UNI/MET. | 1 | 09/2000 | 51210018013 | $189.72 | arrêté | Shop at ECS Tuning | ||
| Indiquer code couleur à la commande | ||||||||||
| 11 | Serrure piece avec code droite | 1 | 09/2000 | 51217019974 | $88.57 | Shop at ECS Tuning | ||||
| 11 | Serrure piece avec clef gauche | 1 | 09/2000 | 51217019975 | $84.58 | Shop at ECS Tuning | ||||
| 11 | Barillet droit avec clé | 1 | 09/2000 | 51217019976 | $84.58 | +vieille matière | Shop at ECS Tuning | |||
| ETA /Liefertermin nicht vor 01 Mai 2025 | ||||||||||
| 11 | Fermeture avec code gauche | 1 | 09/2000 | 51217019973 | $88.57 | Shop at ECS Tuning | ||||
| 12 | Appui de support de poignée gauche | 1 | 09/2000 | 51217012767 | $1.49 | Shop at ECS Tuning | ||||
| 12 | Appui de support de poignée droit | 1 | 09/2000 | 51217012768 | $1.49 | Shop at ECS Tuning | ||||
| 13 | Appui de cylindre de serrure gauche | 1 | 09/2000 | 51217012769 | $1.58 | Shop at ECS Tuning | ||||
| 13 | Appui de cylindre de serrure droit | 1 | 09/2000 | 51217012770 | $1.58 | Shop at ECS Tuning | ||||
| 14 | Support de poignée extér.porte av. gau. | 1 | 09/2000 | 51217048281 | $59.63 | Shop at ECS Tuning | ||||
| 14 | Support de poignée extér.porte av. dro. | 1 | 09/2000 | 51217048282 | $59.63 | Shop at ECS Tuning | ||||
| 15 | Vis cylindrique | M5X22 | 2 | 09/2000 | 51217049951 | $1.27 | Shop at ECS Tuning | |||
| 16 | Vis torx pour aluminium | ISA | 2 | 09/2000 | 07147209542 | $0.56 | Shop at ECS Tuning | |||
| 17 | Plaque filetee | M8 | 2 | 09/2000 | 41218235745 | $1.96 | Shop at ECS Tuning | |||
| 19 | Vis Torx | M5 LINKSGEWINDE | 2 | 09/2000 | 51217049952 | $1.58 | Shop at ECS Tuning | |||
| 20 | Support p câble Bowden gauche | 1 | 09/2000 | 51217025439 | $2.55 | Shop at ECS Tuning | ||||
| 20 | Support p câble Bowden droite | 1 | 09/2000 | 51217025440 | $2.55 | Shop at ECS Tuning | ||||
| 21 | Recouvrement chromé droit | CHROM | 1 | 09/2000 | 51217002276 | $17.02 | Shop at ECS Tuning | |||
| 21 | Cache droit en apprêt | 1 | 09/2000 | 51217002278 | $14.07 | Shop at ECS Tuning | ||||
| NE CONVENANT QU'AVEC COTE PASSAGER | ||||||||||
| 21 | Cache peint droit | CODE - UNI/MET. | 1 | 09/2000 | 51210018022 | $83.14 | arrêté | Shop at ECS Tuning | ||
| Indiquer code couleur à la commande | ||||||||||
| 24 | Piece d'arret pour tiges | 2 | 09/2000 | 51221817032 | $0.31 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
