Pièces de carcasse latérale for BMW 6 Series E63 650i (2007)

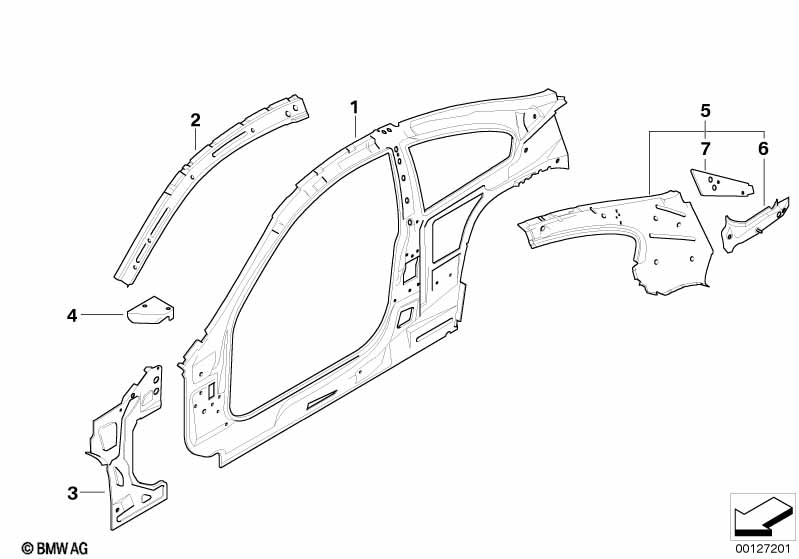

This Pièces de carcasse latérale technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cadre latéral intérieur gauche | 1 | 09/2005 | 41217155393 | $1477.00 | Shop at ECS Tuning | ||||
| 01 | Cadre latéral intérieur droit | 1 | 09/2005 | 41217155394 | $1477.00 | arrêté | Shop at ECS Tuning | |||
| 02 | Raccord pied avant/cadre de toit gauche | 1 | 41217120039 | $306.27 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 02 | Raccord pied avant/cadre de toit droit | 1 | 41217120040 | $306.27 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 03 | Montant A intérieur gauche | 1 | 41217136759 | $112.80 | arrêté | Shop at ECS Tuning | ||||
| 03 | Montant A intérieur droit | 1 | 41217136760 | $112.80 | Shop at ECS Tuning | |||||
| 04 | Renforcement de montant A intér. gauche | 1 | 41147120893 | $7.52 | arrêté | Shop at ECS Tuning | ||||
| 04 | Renforcement de montant A intér. droit | 1 | 41147120894 | $7.52 | arrêté | Shop at ECS Tuning | ||||
| 05 | Renforcement de montant C intér. gauche | 1 | 41217120029 | $171.37 | Shop at ECS Tuning | |||||
| 05 | Renforcement de montant C intér. droite | 1 | 41217120030 | $171.37 | Shop at ECS Tuning | |||||
| 06 | Renforcement de montant C,inférieur,gau. | 1 | 41217120031 | $56.93 | Shop at ECS Tuning | |||||
| 06 | Renforcement de montant C,inférieur,dro. | 1 | 41217120032 | $56.93 | Shop at ECS Tuning | |||||
| 07 | Bande de tension montant C, gauche | 1 | 41217120033 | $40.02 | arrêté | Shop at ECS Tuning | ||||
| 07 | Bande de tension montant C, droit | 1 | 41217120034 | $40.02 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
