Porte AV-Charnière/Frein de porte for BMW 6 Series E63 630i (2007)

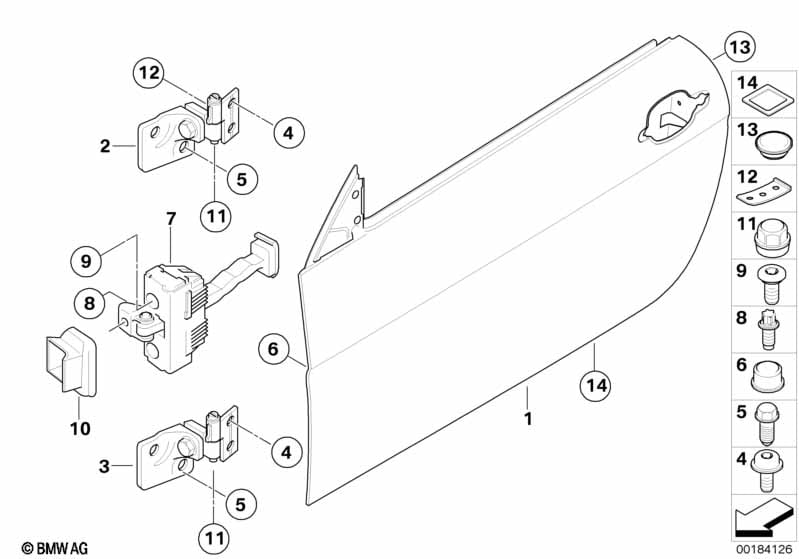

This Porte AV-Charnière/Frein de porte technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Porte gauche | 1 | 41517202075 | $968.16 | Shop at ECS Tuning | |||||
| 01 | Porte droite | 1 | 41517202076 | $968.16 | Shop at ECS Tuning | |||||
| 02 | Charnière de porte supérieur gauche | 1 | 41527200227 | $50.13 | Shop at ECS Tuning | |||||
| 02 | Charnière de porte supérieur droit | 1 | 41527200228 | $50.13 | Shop at ECS Tuning | |||||
| 03 | Charnière de porte inférieur gauche | 1 | 41517200225 | $50.13 | Shop at ECS Tuning | |||||
| 03 | Charnière de porte inférieur droit | 1 | 41517200226 | $50.13 | Shop at ECS Tuning | |||||
| 04 | Ecrou six pans avec plaque | M8 | 8 | 07146970706 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Vis six pans avec rondelle | M10X35 | 8 | 07146966140 | $1.33 | Shop at ECS Tuning | ||||
| 06 | Capuchon de protection | SCHWARZ | 4 | 51218177670 | $0.33 | Shop at ECS Tuning | ||||
| 07 | Frein de la porte | 2 | 51217176803 | $46.62 | Shop at ECS Tuning | |||||
| 08 | Vis torx avec disque | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Vis torx avec disque | ISA M6X10 | 4 | 07147184168 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Joint de frein de porte | 2 | 51217009113 | $14.41 | Shop at ECS Tuning | |||||
| 11 | Vis six pans | M6X22-8.8-MK | 4 | 07119906263 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Rondelle entretoise | 1,0MM | X | 41517202047 | $3.02 | Shop at ECS Tuning | ||||
| 12 | Rondelle entretoise | 0,5MM | X | 41518173321 | $3.02 | Shop at ECS Tuning | ||||
| 13 | Reflecteur | RUBIN | 2 | 51717161921 | $3.27 | Shop at ECS Tuning | ||||
| 14 | Bouchon | 2 | 51337114616 | $1.12 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
