Aile arrière for BMW 6 Series E63 630i (2007)

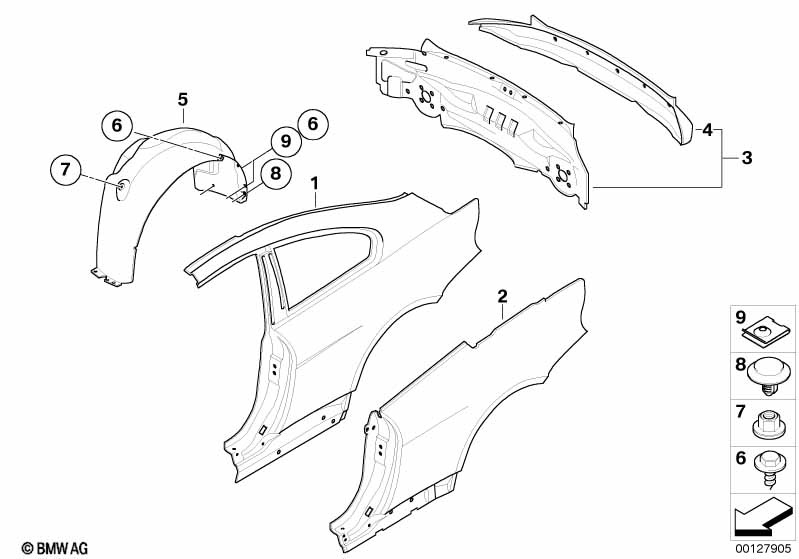

This Aile arrière technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aile arrière gauche | 1 | 41217120059 | $777.05 | Shop at ECS Tuning | |||||
| Nécessaire pour la réparation | ||||||||||
| 01 | Aile arrière droite | 1 | 41217120060 | $777.05 | Shop at ECS Tuning | |||||
| Nécessaire pour la réparation | ||||||||||
| -- | Mastic d'étanchéité D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 03 | Revêtement arrière complet | 1 | 41347135639 | $354.33 | Shop at ECS Tuning | |||||
| Nécessaire pour la réparation | ||||||||||
| -- | Mastic d'étanchéité D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| 04 | Panneau extérieur de revêtement arrière | 1 | 41347120051 | $194.87 | +vieille matière | Shop at ECS Tuning | ||||
| 05 | Cache de passage de roue arrière gauche | 1 | 51717009717 | $22.27 | Shop at ECS Tuning | |||||
| 05 | Cache de passage de roue arrière droit | 1 | 51717009718 | $23.52 | Shop at ECS Tuning | |||||
| 06 | Vis a tole a six pans avec rondelle | ST4,8X16MM | 6 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 07 | écrou borgne plastique avec rondelle | D=18MM | 6 | 07/2010 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 07 | Ecrou plast. axe à filetage à pas gros | M6 | 6 | 07147336362 | Shop at ECS Tuning | |||||
| 08 | Rivet | D = 8MM | 2 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Ecrou tôlé | ST4,8-9-ZNS3 | 6 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
