Revetement d'aile arriere for BMW 3 Series F31 LCI 330iX (2015)

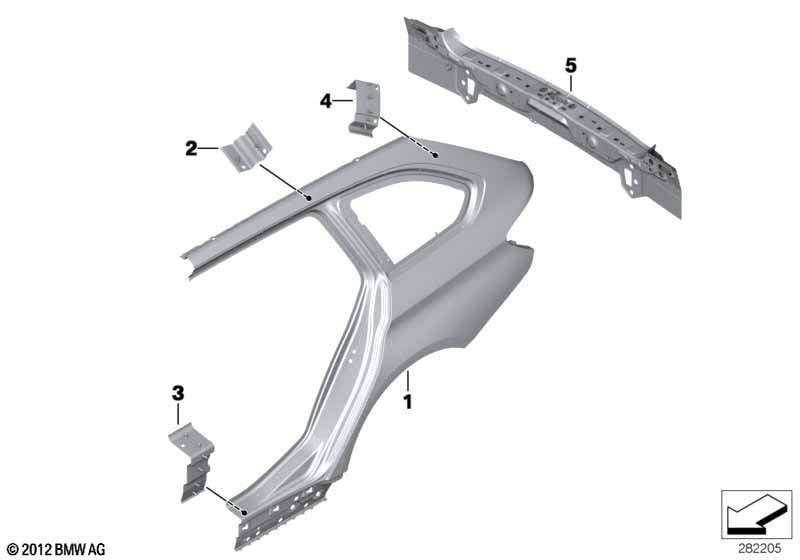

This Revetement d'aile arriere technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 LCI 330iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Est réalisé en utilisant la technique de réparation de collage/rivetage. |
||||||||||
| 01 | Aile arrière gauche | 1 | 41007298179 | Shop at ECS Tuning | ||||||
| Nécessaire pour la réparation | ||||||||||
| -- | Rivet aveugle N3 | 10 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Vis | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Enduit pour cavités-produit anti-cire | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Colle à carrosserie K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Nettoyant R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Rivet aveugle N4 | 45 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Aide de positionn.pion de fixation en T | 1 | 41212460145 | Shop at ECS Tuning | ||||||
| -- | Mastic d'étanchéité D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Colle à carrosserie K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | écrou borgne plastique avec rondelle | D=22MM | 6 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Tôle de renfort universelle | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Tôle renfort de montant C côté gauche | 1 | 41217298193 | Shop at ECS Tuning | ||||||
| -- | Tôle renfort de montant D côté gauche | 1 | 41217298197 | Shop at ECS Tuning | ||||||
| -- | Tôle de renfort de bas de marche gauche | 1 | 41217298207 | Shop at ECS Tuning | ||||||
| -- | Ecrou plast. axe à filetage à pas gros | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| -- | boulon en T à souder | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 01 | Aile arrière droite | 1 | 41007298180 | Shop at ECS Tuning | ||||||
| Nécessaire pour la réparation | ||||||||||
| -- | Rivet aveugle N3 | 10 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Vis | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Enduit pour cavités-produit anti-cire | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Colle à carrosserie K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Nettoyant R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Rivet aveugle N4 | 45 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Aide de positionn.pion de fixation en T | 1 | 41212460145 | Shop at ECS Tuning | ||||||
| -- | Mastic d'étanchéité D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Colle à carrosserie K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | écrou borgne plastique avec rondelle | D=22MM | 6 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Tôle de renfort universelle | 1 | 41217275563 | Shop at ECS Tuning | ||||||
| -- | Tôle renfort de montant C côté droit | 1 | 41217298194 | Shop at ECS Tuning | ||||||
| -- | Tôle renfort de montant D côté droit | 1 | 41217298198 | Shop at ECS Tuning | ||||||
| -- | Tôle de renfort de bas de marche droit | 1 | 41217298208 | Shop at ECS Tuning | ||||||
| -- | Ecrou plast. axe à filetage à pas gros | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| -- | boulon en T à souder | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 02 | Tôle renfort de montant C côté gauche | 1 | 41217298193 | Shop at ECS Tuning | ||||||
| 02 | Tôle renfort de montant C côté droit | 1 | 41217298194 | Shop at ECS Tuning | ||||||
| 03 | Tôle de renfort de bas de marche gauche | 1 | 41217298207 | Shop at ECS Tuning | ||||||
| 03 | Tôle de renfort de bas de marche droit | 1 | 41217298208 | Shop at ECS Tuning | ||||||
| 04 | Tôle renfort de montant D côté gauche | 1 | 41217298197 | Shop at ECS Tuning | ||||||
| 04 | Tôle renfort de montant D côté droit | 1 | 41217298198 | Shop at ECS Tuning | ||||||
| Est réalisé en utilisant la technique de réparation de collage/rivetage. |
||||||||||
| 05 | Revetement arriere | 1 | 41007297999 | Shop at ECS Tuning | ||||||
| Nécessaire pour la réparation | ||||||||||
| -- | Rivet aveugle N3 | 22 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Vis | SF PLUS M5X15 | 6 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Rivet auto-poinçonneur | N5 | 8 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Nettoyant R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Rivet aveugle N4 | 2 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Mastic d'étanchéité D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Colle à carrosserie K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
