Pièces montage compléments carrosserie for BMW MINI Clubman R55 LCI Cooper (2010)

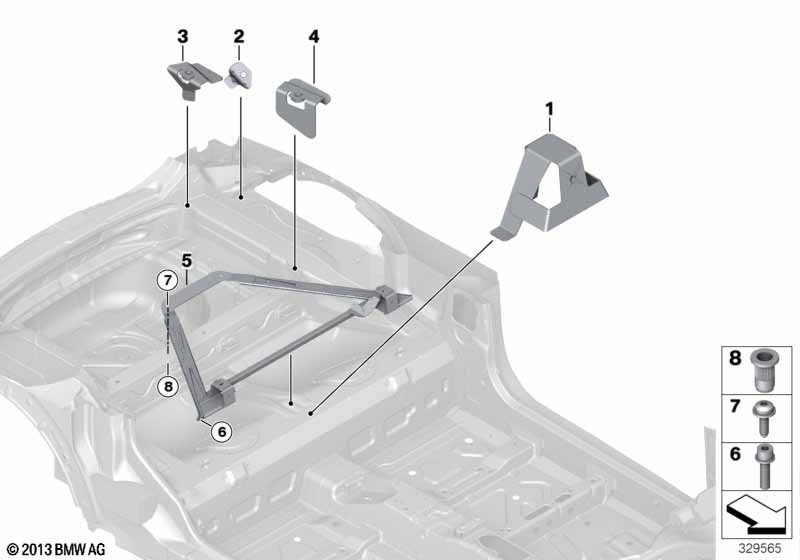

This Pièces montage compléments carrosserie technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec MINI Clubvan |
PXK1A=Oui |
|||||||||
| 01 | Support structure plancher milieu | 1 | 41007375899 | Shop at ECS Tuning | ||||||
| 02 | Support de revêtement latéral AR | 1 | 41007375900 | Shop at ECS Tuning | ||||||
| 03 | Support anneau d'arrimage AR gauche | 1 | 41007375895 | Shop at ECS Tuning | ||||||
| 03 | Support anneau d'arrimage AR droit | 1 | 41007375896 | Shop at ECS Tuning | ||||||
| 04 | Support anneau d'arrimage avant gauche | 1 | 41007375897 | Shop at ECS Tuning | ||||||
| 04 | Support anneau d'arrimage avant droit | 1 | 41007375898 | Shop at ECS Tuning | ||||||
| 05 | Renfort structure de soubassement | 1 | 41007344639 | Shop at ECS Tuning | ||||||
| 06 | Vis de fixation | M5X25-Z1-8.8 | 4 | 07129903784 | Shop at ECS Tuning | |||||
| 07 | Vis torx avec disque | ISA M8X25 | 2 | 07147301867 | Shop at ECS Tuning | |||||
| 08 | Ecrou aveugle à river, tête plate | M8 | 2 | 07146989335 | $1.41 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman R55 LCI Cooper Pièces montage compléments carrosserie?
- This technical diagram illustrates the Pièces montage compléments carrosserie within the Tôlerie - Carrosserie group for the MINI Clubman R55 LCI Cooper produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Support structure plancher milieu (Part #41007375899).
- Which models use the hardware listed in this Pièces montage compléments carrosserie?
- The hardware and components featured in the Pièces montage compléments carrosserie are specific to the MINI Clubman R55 LCI Cooper produced during 2010. These technical specifications ensure that parts like the Support structure plancher milieu (41007375899) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pièces montage compléments carrosserie assembly?
- Each item in the Pièces montage compléments carrosserie corresponds to the numbered list below the illustration. For the MINI Clubman R55 LCI Cooper, you can identify the Support structure plancher milieu by locating its position on the schematic, which then links to the official BMW part number 41007375899 for the Tôlerie - Carrosserie section.
