Cadre latéral central for BMW 7 Series G70 740d (2022)

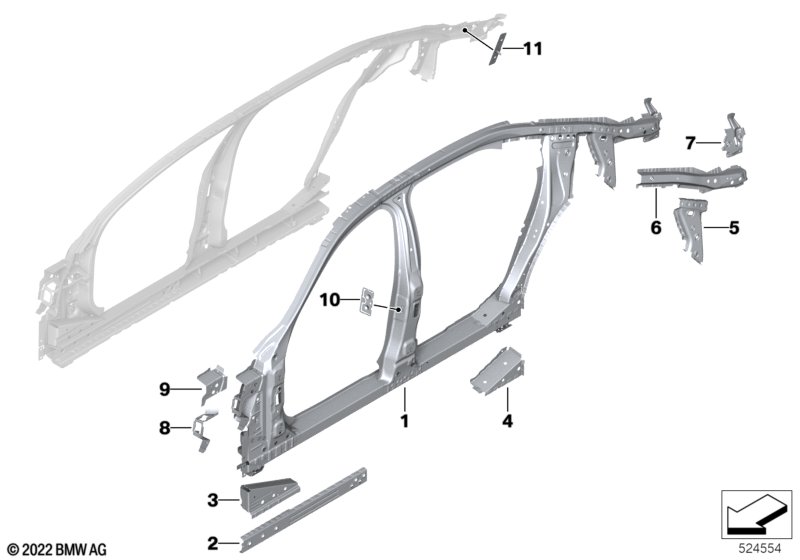

This Cadre latéral central technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cadre latéral central gauche | 1 | 41215A37AF5 | NoS | Shop at ECS Tuning | |||||
| 01 | Cadre latéral central droit | 1 | 41215A37AF6 | NoS | Shop at ECS Tuning | |||||
| 02 | Tole de renforcement de longeron avant g | 1 | 41215A37B23 | Shop at ECS Tuning | ||||||
| 02 | Tole de renforcement de longeron avant D | 1 | 41215A37B24 | Shop at ECS Tuning | ||||||
| 03 | Renfort anticollision, montant A gauche | 1 | 41215A37B13 | Shop at ECS Tuning | ||||||
| 03 | Renfort anticollision, montant A droit | 1 | 41215A37B14 | Shop at ECS Tuning | ||||||
| 04 | Renfort bas de caisse gauche | 1 | 41215A37B45 | NoS | Shop at ECS Tuning | |||||
| 04 | Renfort bas de caisse droite | 1 | 41215A37B46 | NoS | Shop at ECS Tuning | |||||
| 05 | Renfort pied arrière gauche | 1 | 41215A37B33 | Shop at ECS Tuning | ||||||
| 05 | Renfort pied arrière droit | 1 | 41215A37B34 | Shop at ECS Tuning | ||||||
| 06 | Bande de tension montant C, gauche | 1 | 41215A37B47 | Shop at ECS Tuning | ||||||
| 06 | Bande de tension montant C, droit | 1 | 41215A37B48 | Shop at ECS Tuning | ||||||
| 07 | Console assistance ouverture côté gauche | 1 | 41215A37B41 | Shop at ECS Tuning | ||||||
| 07 | Console assistance ouverture côté droit | 1 | 41215A37B42 | Shop at ECS Tuning | ||||||
| 08 | Tôle cloison pied avant gauche | 1 | 41215A37B21 | Shop at ECS Tuning | ||||||
| 08 | Tôle cloison pied avant droit | 1 | 41215A37B22 | Shop at ECS Tuning | ||||||
| 09 | Appui de support gauche | 1 | 41215A37B01 | Shop at ECS Tuning | ||||||
| 09 | Appui de support droit | 1 | 41215A37B02 | Shop at ECS Tuning | ||||||
| 10 | Plaque filetée gâche | 2 | 41009852058 | NoS | Shop at ECS Tuning | |||||
| 11 | Support de boîtier électronique VDP | 1 | 41215A37B44 | Shop at ECS Tuning |
Note
- NoS = No Stock (Pièce pas en stock dans magasin central)
