Garde-boue avant for BMW R50/5-R90S 69-76 R90S

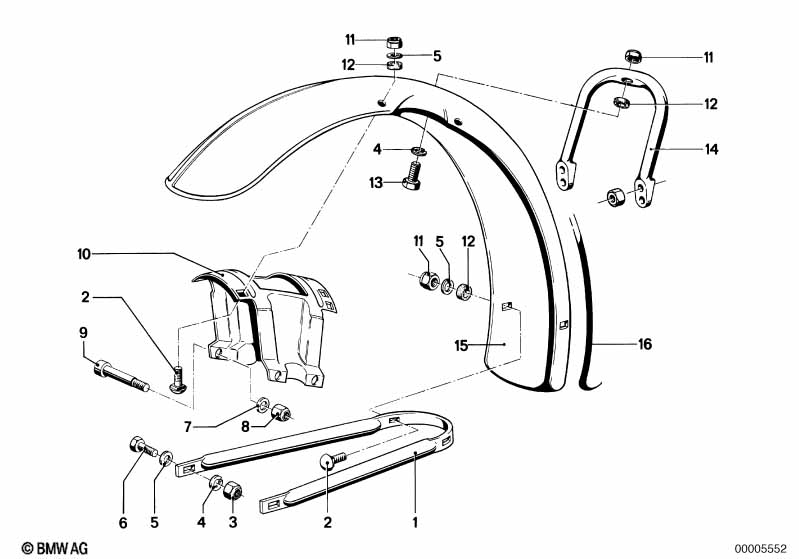

This Garde-boue avant technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Vis à tête bombée | M6X16 | 4 | 07119910408 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Plaque d'appui | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Rondelle elastique | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Plaque d'appui | 8,4X18X2MM | 4 | 07149180923 | Shop at ECS Tuning | |||||
| 08 | Ecrou à six pans autobloquant | M8-8-ZNS3 | 4 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Vis cylindrique | M8X50-8.8-ZNS3 | 2 | 07119901034 | $1.42 | arrêté | Shop at ECS Tuning | |||
| 09 | Vis Isa | M8X55-8.8-ZNNIV | 2 | 07129906694 | Shop at ECS Tuning | |||||
| 10 | Etrier | 1 | 46611234907 | $96.15 | Shop at ECS Tuning | |||||
| 11 | Ecrou à chape | M6 | 6 | 07119924403 | $6.37 | Shop at ECS Tuning | ||||
| 12 | Rondelle caoutchouc | 4 | 46621230798 | $2.23 | Shop at ECS Tuning | |||||
| 15 | Garde-boue muni d.cou.d.fond.avant. | 1 | 46611234931 | $258.82 | Shop at ECS Tuning | |||||
| 16 | Bande p tracage d lignes or | 104 | X | 51141233429 | $41.90 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
