Pièces de montage d'aile de roue arrière for BMW R50/5-R90S 69-76 R90S

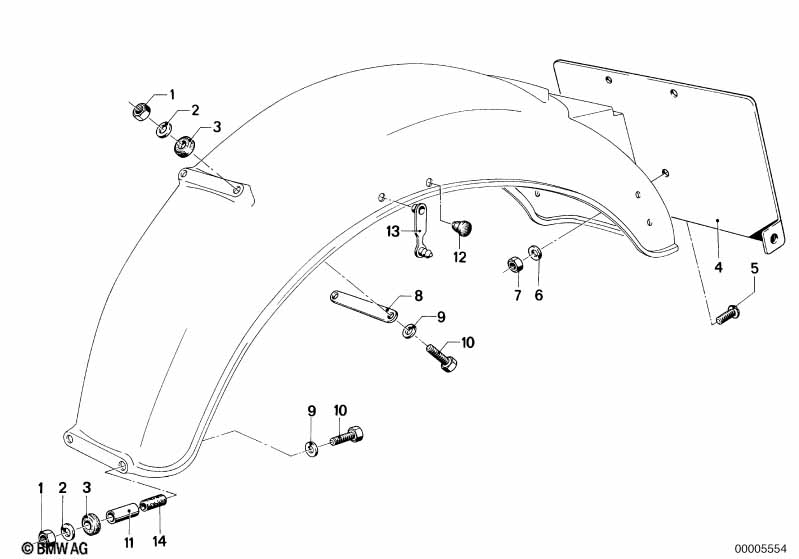

This Pièces de montage d'aile de roue arrière technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ecrou à six pans | M6-8-ZNS3 | 4 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 01 | Ecrou à six pans autobloquant | M6 ZNNIV SI | 4 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 02 | Plaque d'appui | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 03 | Rondelle caoutchouc | 4 | 46621230798 | $2.23 | Shop at ECS Tuning | |||||
| Pour véhicules avec Suisse version |
=Oui |
|||||||||
| 04 | Tole de fixation | 1 | 46622303274 | $27.66 | Shop at ECS Tuning | |||||
| 05 | Vis à tête noyée | M5X12 | 3 | 07119928480 | $0.87 | arrêté | Shop at ECS Tuning | |||
| 06 | Plaque d'appui | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Appui | 2 | 63231352944 | $2.58 | Shop at ECS Tuning | |||||
| 09 | Plaque d'appui | A6,4-200HV-ZNS3 | 6 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Vis six pans | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Vis six pans | M6X20-8.8-ZNS | 2 | 07119913016 | $0.60 | arrêté | Shop at ECS Tuning | |||
| 12 | Bouchon | 3 | 41355780222 | $0.40 | Shop at ECS Tuning | |||||
| 13 | Arret de cable | 110MM | 3 | 61131356776 | $0.42 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
