Carenage en appret for BMW R50/5-R90S 69-76 R90S

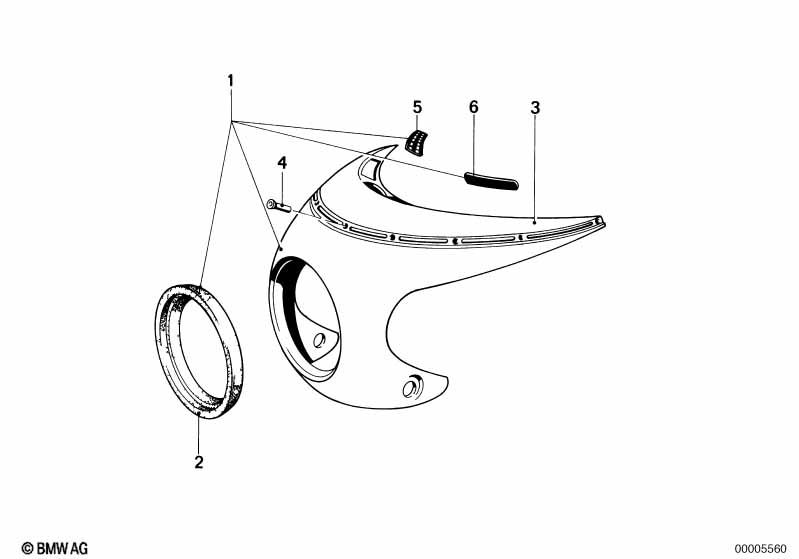

This Carenage en appret technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carenage en appret | 1 | 46631233732 | $539.50 | arrêté | Shop at ECS Tuning | ||||
| 01 | Carenage | BOLDOR ROT | 1 | 46631233734 | arrêté | Shop at ECS Tuning | ||||
| 02 | Joint | 1 | 46631233186 | $31.19 | Shop at ECS Tuning | |||||
| 03 | Planche de bord | 1 | 46631233187 | $41.08 | Shop at ECS Tuning | |||||
| 04 | Rivet | A6X0.4X8-CU | X | 07119949632 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Etiquette indicatrice droite | 1 | 46631233191 | arrêté | Shop at ECS Tuning | |||||
| 06 | Etiquette indicatrice gauche | 1 | 46631236235 | $13.54 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
