Valise touring for BMW R50/5-R90S 69-76 R90S

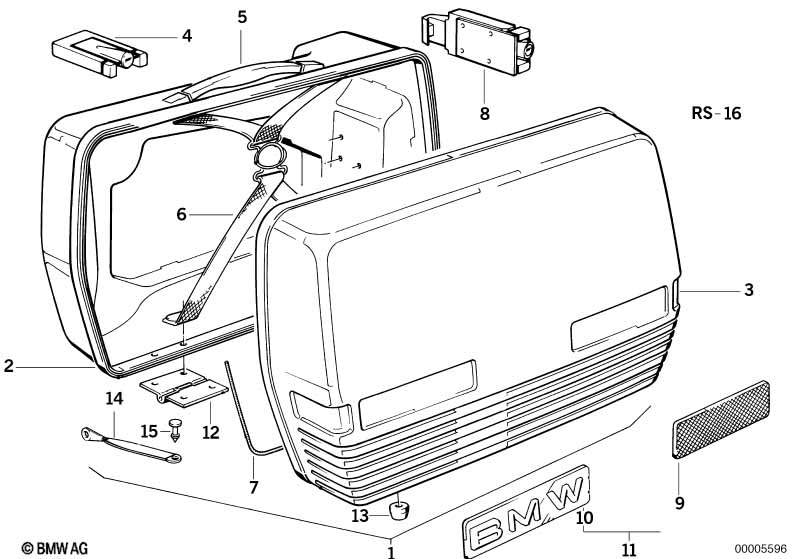

This Valise touring technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Jeu de coffre Touring | 1 | 46542315185 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| ne convenant qu'avec verrouillage uniform véhicule |
||||||||||
| 01 | Coffre Touring gauche | 33L | 1 | 46542315183 | $343.14 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| ne convenant qu'avec | ||||||||||
| -- | Cylindre de serrure avec code | X | 51252303681 | arrêté | Shop at ECS Tuning | |||||
| -- | Jeu de serrures Code | X | 71602303684 | $181.14 | +vieille matière | Shop at ECS Tuning | ||||
| 01 | Coffre Touring droit | 33L | 1 | 46542315184 | $343.14 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| ne convenant qu'avec | ||||||||||
| -- | Cylindre de serrure avec code | X | 51252303681 | arrêté | Shop at ECS Tuning | |||||
| -- | Jeu de serrures Code | X | 71602303684 | $181.14 | +vieille matière | Shop at ECS Tuning | ||||
| 02 | Partie inferieure gauche | 1 | 46541237990 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 02 | Partie inferieure droite | 1 | 46541237991 | $284.34 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 03 | Couvercle | 2 | 46541237992 | $160.74 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 04 | Serrure | 4 | 46542303821 | $36.84 | arrêté | Shop at ECS Tuning | ||||
| 05 | Poignee | 2 | 46542300013 | $22.19 | Shop at ECS Tuning | |||||
| 06 | Bande caoutchouc | 4 | 46542300015 | $24.10 | Shop at ECS Tuning | |||||
| 07 | Joint | 2 | 46542300016 | $7.21 | Shop at ECS Tuning | |||||
| 08 | Serrure suspension coffre | 2 | 46542315320 | $36.84 | Shop at ECS Tuning | |||||
| 09 | Catadioptre latéral jaune avant | 2 | 63141244529 | $8.98 | Shop at ECS Tuning | |||||
| Pour véhicules avec Suisse version |
=Oui |
|||||||||
| 09 | Catadioptre lateral avant | ROT | 2 | 63141239457 | $8.98 | Shop at ECS Tuning | ||||
| 10 | Emblème | "BMW" | 2 | 46541239455 | $20.62 | Shop at ECS Tuning | ||||
| 11 | Kit catadioptres lateraux | GELB | 2 | 46549055647 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Suisse version |
=Oui |
|||||||||
| 11 | Kit catadioptres lateraux | ROT | 2 | 46549055648 | arrêté | Shop at ECS Tuning | ||||
| 12 | Charniere | 4 | 46542300018 | $6.89 | Shop at ECS Tuning | |||||
| 13 | Appui | 4 | 46542300017 | $5.08 | arrêté | Shop at ECS Tuning | ||||
| 14 | Attache de fixation | L=180MM | 2 | 46542300441 | $12.95 | Shop at ECS Tuning | ||||
| 15 | Boulon | 2 | 51161828956 | $0.48 | arrêté | Shop at ECS Tuning | ||||
| 16 | Jeu rivet | X | 46549057696 | $16.56 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
