Vitrage for BMW 3 Series E21 316 (1982)

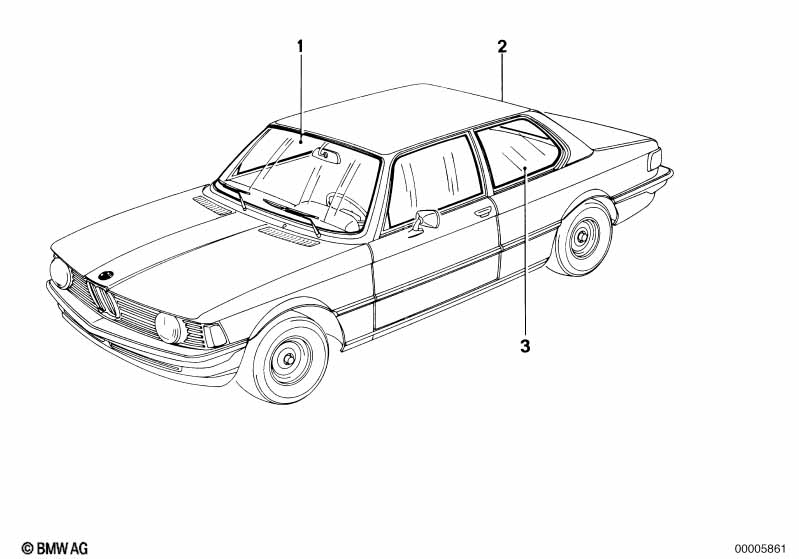

This Vitrage technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pare-brise transpar. | 1 | 51311912930 | $206.91 | Shop at ECS Tuning | |||||
| ne convenant qu'avec | ||||||||||
| 01 | Pare-brise vert | 1 | 51311912931 | $226.62 | arrêté | Shop at ECS Tuning | ||||
| ne convenant qu'avec | ||||||||||
| 01 | Pare-brise teinte bronze | 1 | 51311912932 | arrêté | Shop at ECS Tuning | |||||
| ne convenant qu'avec | ||||||||||
| -- | Joint d'etanch.d.glace d.pare-brise | X | 51311904395 | $105.30 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Australie |
L810A=Oui |
|||||||||
| 01 | Pare-brise transpar. | 1 | 51311912930 | $206.91 | Shop at ECS Tuning | |||||
| ne convenant qu'avec | ||||||||||
| -- | Joint d'etanch.d.glace d.pare-brise | X | 51311904395 | $105.30 | arrêté | Shop at ECS Tuning | ||||
| 02 | Lunette arrière transparente | 1 | 51311358551 | $338.94 | arrêté | Shop at ECS Tuning | ||||
| 02 | Lunette arriere teintee verte | 1 | 51311358560 | $230.55 | arrêté | Shop at ECS Tuning | ||||
| 02 | Lunette arriere teintee bronze | 1 | 51311879890 | $246.64 | Shop at ECS Tuning | |||||
| 03 | Glace latérale transparente gauche | 1 | 51361840901 | $65.01 | Shop at ECS Tuning | |||||
| 03 | Vitre laterale droite incolore | 1 | 51361840902 | $65.01 | arrêté | Shop at ECS Tuning | ||||
| 03 | Vitre latérale, vert, gauche | 1 | 51361841475 | $108.81 | arrêté | Shop at ECS Tuning | ||||
| 03 | Glace latérale fougère droite | 1 | 51361841476 | $108.81 | arrêté | Shop at ECS Tuning | ||||
| 03 | Glace latérale bronze dorée gauche | 1 | 51361879895 | $93.19 | Shop at ECS Tuning | |||||
| 03 | Glace latérale bronze dorée droite | 1 | 51361879896 | $83.70 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
