Pièces accolées vitrage for BMW 7 Series E23 735i (1982)

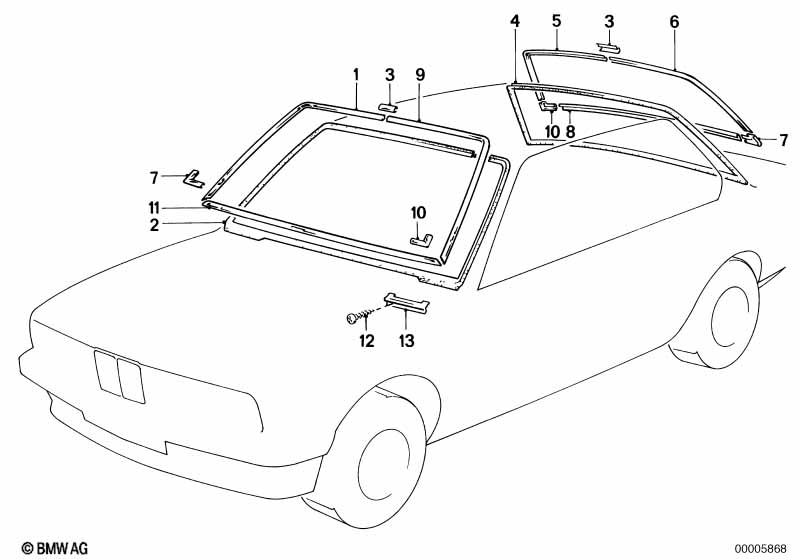

This Pièces accolées vitrage technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Enjoliveur droit | 1 | 08/1979 | 51311846450 | $56.08 | Shop at ECS Tuning | ||||
| 01 | Enjoliveur droit | SCHWARZ | 1 | 08/1979 | 51311959708 | arrêté | Shop at ECS Tuning | |||
| 02 | Joint d'etanch.d.glace d.pare-brise | 1 | 08/1979 | 51311871254 | $97.30 | arrêté | Shop at ECS Tuning | |||
| 03 | Coupelle | 2 | 08/1979 | 51311800068 | $23.19 | Shop at ECS Tuning | ||||
| 03 | Coupelle | SCHWARZ | 2 | 08/1979 | 51311959713 | $10.83 | Shop at ECS Tuning | |||
| 04 | Joint de lunette arriere | 1 | 08/1979 | 51311871978 | $97.30 | arrêté | Shop at ECS Tuning | |||
| 05 | Enjoliveur droit | 1 | 08/1979 | 51311846384 | $118.48 | arrêté | Shop at ECS Tuning | |||
| 05 | Enjoliveur droit | SCHWARZ | 1 | 08/1979 | 51311959712 | arrêté | Shop at ECS Tuning | |||
| 06 | Encadrement dekor gauche | 1 | 08/1979 | 51311846383 | $118.48 | Shop at ECS Tuning | ||||
| 06 | Encadrement dekor gauche | SCHWARZ | 1 | 08/1979 | 51311959711 | arrêté | Shop at ECS Tuning | |||
| 07 | Coupelle | 4 | 08/1979 | 51311854023 | $5.03 | Shop at ECS Tuning | ||||
| 07 | Coupelle | SCHWARZ | 4 | 08/1979 | 51311959714 | arrêté | Shop at ECS Tuning | |||
| 08 | Enjoliveur inferieur | 1 | 08/1979 | 51311854022 | $138.64 | arrêté | Shop at ECS Tuning | |||
| 08 | Enjoliveur inferieur | SCHWARZ | 1 | 08/1979 | 51311959710 | arrêté | Shop at ECS Tuning | |||
| 09 | Encadrement dekor gauche | 1 | 08/1979 | 51311846449 | $56.08 | Shop at ECS Tuning | ||||
| 09 | Encadrement dekor gauche | SCHWARZ | 1 | 08/1979 | 51311959707 | $50.78 | arrêté | Shop at ECS Tuning | ||
| 10 | Coupelle | 2 | 08/1979 | 51311854023 | $5.03 | Shop at ECS Tuning | ||||
| 11 | Enjoliveur inferieur | 1 | 08/1979 | 51311854021 | $51.86 | Shop at ECS Tuning | ||||
| 11 | Enjoliveur inferieur | SCHWARZ | 1 | 08/1979 | 51311959709 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
