Pièces accolées vitrage for BMW 7 Series E23 735i (1981)

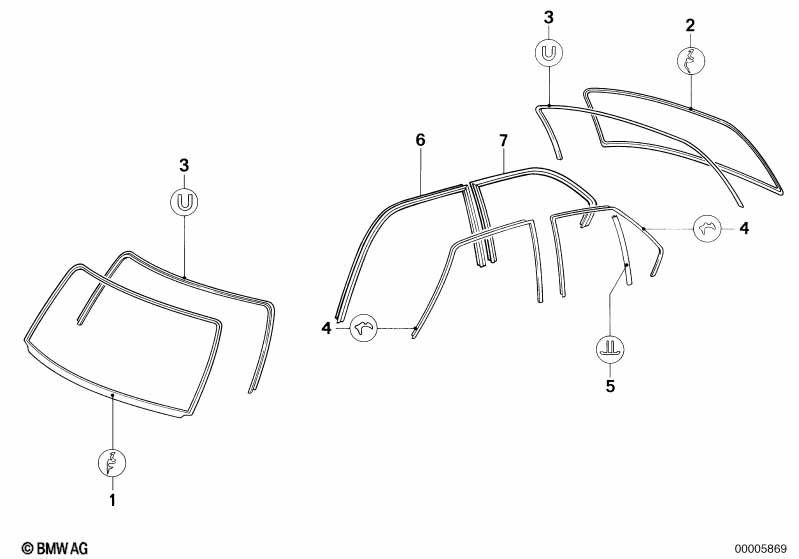

This Pièces accolées vitrage technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint | 1 | 51311878276 | arrêté | Shop at ECS Tuning | |||||
| 02 | Joint | 1 | 51311878299 | arrêté | Shop at ECS Tuning | |||||
| 03 | Protection de bord | 4100MM | 1 | 51311935995 | arrêté | Shop at ECS Tuning | ||||
| 03 | Protection de bord | 3900MM | 1 | 51311935996 | arrêté | Shop at ECS Tuning | ||||
| 04 | Appui | 1 | 51311878418 | arrêté | Shop at ECS Tuning | |||||
| 05 | Moulure arrière | 1 | 51721878351 | arrêté | Shop at ECS Tuning | |||||
| 06 | Cadre de vitre avant gauche | 1 | 51321878045 | arrêté | Shop at ECS Tuning | |||||
| 06 | Cadre de vitre de porte avant droite | 1 | 51321878046 | arrêté | Shop at ECS Tuning | |||||
| 07 | Cadre de fenetre arriere gauche | 1 | 51341878567 | arrêté | Shop at ECS Tuning | |||||
| 07 | Cadre de fenetre arriere droite | 1 | 51341878568 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
