Pièces accolées vitrage for BMW 3 Series E21 315 (1982)
This Pièces accolées vitrage technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 315. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint d'etanch.d.glace d.pare-brise | 1 | 01/1982 | 51311904395 | $105.30 | arrêté | Shop at ECS Tuning | |||
| 02 | Moulure enjoliveuse | 1 | 51311835890 | $53.24 | Shop at ECS Tuning | |||||
| 03 | Couvre-joint | 1 | 51311835906 | $9.10 | Shop at ECS Tuning | |||||
| 04 | Joint de lunette arriere | 1 | 51311903889 | $165.73 | Shop at ECS Tuning | |||||
| 05 | Moulure superieure | 1 | 51311835725 | $40.01 | Shop at ECS Tuning | |||||
| 06 | Moulure inferieure | 1 | 51311835726 | $40.01 | Shop at ECS Tuning | |||||

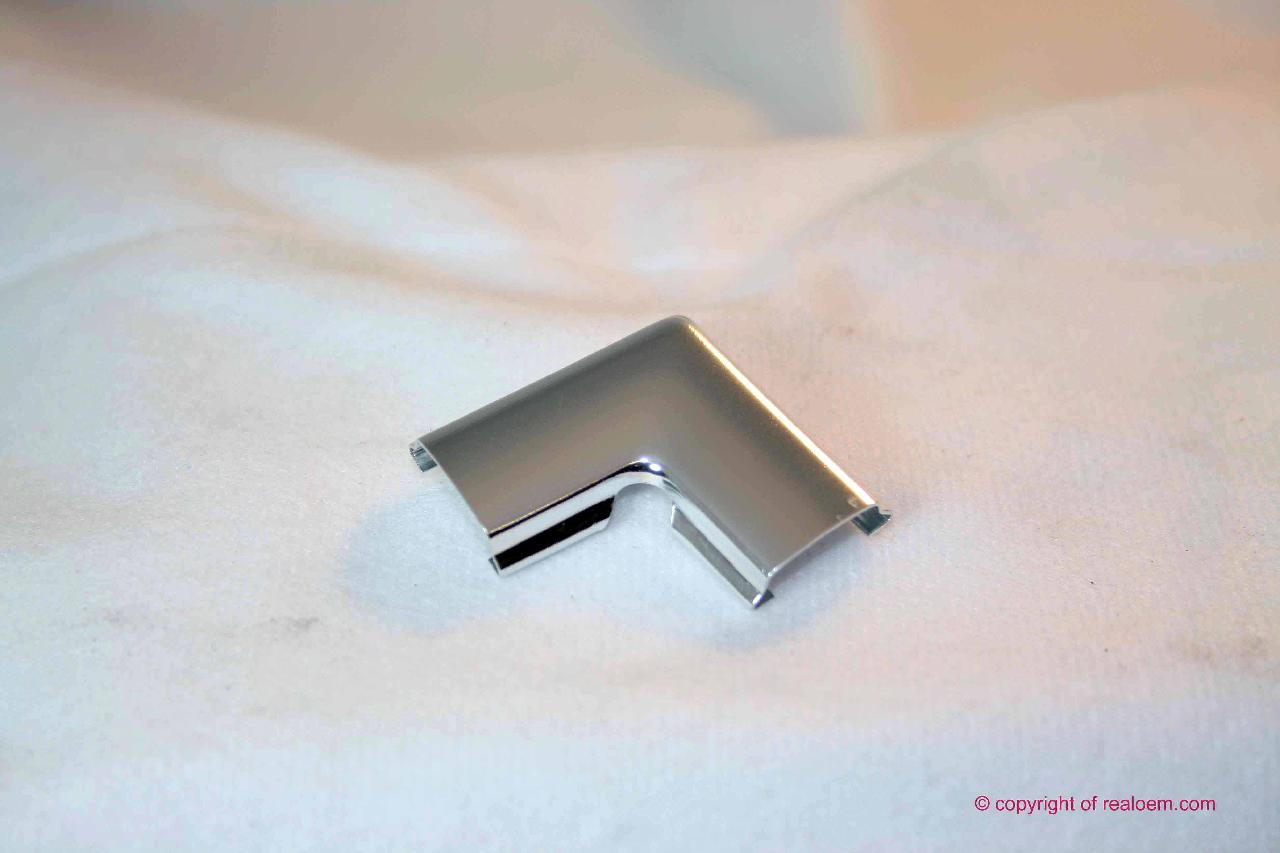

| 07 | Moulure d'angle | 2 | 51311835724 | $9.10 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
