Vitrage for BMW 7 Series E23 735i (1981)

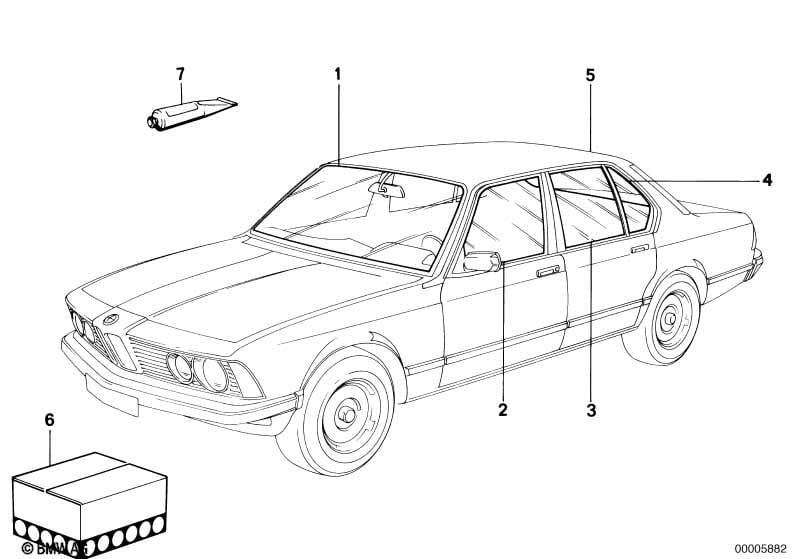

This Vitrage technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pare-brise transpar. | 32MM | 1 | 01/1983 | 51311878274 | arrêté | Shop at ECS Tuning | |||
| 02 | Vitre de porte avant gauche incolore | 32MM | 1 | 01/1983 | 51321878071 | $2589.12 | arrêté | Shop at ECS Tuning | ||
| 02 | Vitre de porte transparente avd | 32MM | 1 | 01/1983 | 51321878072 | $2589.12 | arrêté | Shop at ECS Tuning | ||
| Pour véhicules avec Lève-glace électrique |
=Oui |
|||||||||
| 02 | Vitre de porte avant gauche incolore | 36MM POLYCARBON | 1 | 51321930137 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 02 | Vitre de porte transparente avd | 36MM POLYCARBON | 1 | 51321930138 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 02 | Vitre de porte avant gauche incolore | 36MM POLYCARBON | 1 | 51321935953 | arrêté | Shop at ECS Tuning | ||||
| 02 | Vitre de porte transparente avd | 36MM POLYCARBON | 1 | 51321935954 | arrêté | Shop at ECS Tuning | ||||
| 03 | Vitre de porte transparente arg | 32MM | 1 | 01/1983 | 51341878401 | arrêté | Shop at ECS Tuning | |||
| 03 | Vitre de porte transparente ard | 32MM | 1 | 01/1983 | 51341878402 | arrêté | Shop at ECS Tuning | |||
| 04 | Vitre de porte fixe transp. gauche | 32MM | 1 | 01/1983 | 51341878403 | arrêté | Shop at ECS Tuning | |||
| 04 | Vitre de porte fixe transp. droit | 32MM | 1 | 01/1983 | 51341878404 | arrêté | Shop at ECS Tuning | |||
| 05 | Lunette arrière transparente | 32MM | 1 | 01/1983 | 51311878275 | arrêté | Shop at ECS Tuning | |||
| 06 | Jeu de reparation pare-prise | 1 | 51319058515 | arrêté | Shop at ECS Tuning | |||||
| 07 | Tube de colle | 300G | X | 51141886609 | arrêté | Shop at ECS Tuning | ||||
| 08 | Rail de fixation | LINKS | 1 | 51321935957 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 08 | Rail de fixation | RECHTS | 1 | 51321935958 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
