Pièces accolées vitrage for BMW 3 Series E30 325ix (1989)

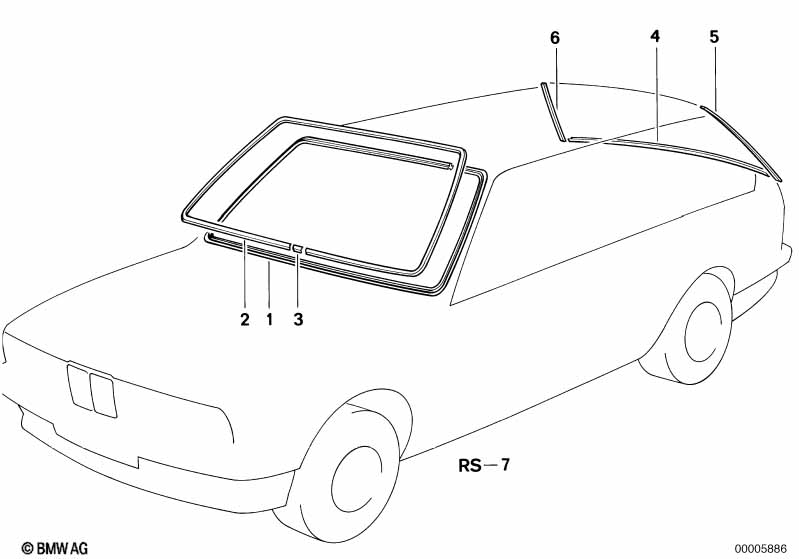

This Pièces accolées vitrage technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint d'etanch.d.glace d.pare-brise | 1 | 51311972248 | $103.66 | Shop at ECS Tuning | |||||
| 02 | Moulure enjoliveuse | SCHWARZ | 1 | 51311968445 | $30.86 | Shop at ECS Tuning | ||||
| 03 | Coupelle | SCHWARZ | 1 | 51311906604 | $3.10 | Shop at ECS Tuning | ||||
| 04 | Recouvrement | 1 | 51311947248 | $13.06 | Shop at ECS Tuning | |||||
| 05 | Cache gauche | 1 | 51311967337 | $24.06 | Shop at ECS Tuning | |||||
| 06 | Cache droit | 1 | 51311967338 | $24.06 | Shop at ECS Tuning | |||||
| 07 | Jeu de reparation pare-prise colle | 255 FC | 1 | 02/1994 | 81229407497 | $91.41 | arrêté | Shop at ECS Tuning | ||
| 07 | Kit de réparation p. vitre, à froid, 1 h | SET | 1 | 02/1994 | 83190444141 | $81.06 | arrêté | Shop at ECS Tuning | ||
| 07 | Jeu de reparation pare-prise colle | ORIGINAL BMW | 1 | 83199407850 | $60.26 | arrêté | Shop at ECS Tuning | |||
| 07 | Jeu de reparation pare-prise colle | ULTRAFAST | 1 | 02/1994 | 83199407714 | $94.86 | arrêté | Shop at ECS Tuning | ||
| 07 | Kit de réparation p. vitre, à froid, 1 h | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Nécessaire pour la réparation | ||||||||||
| -- | Nettoyant R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
