Vitre latérale fixe for BMW 3 Series E30 325ix (1989)

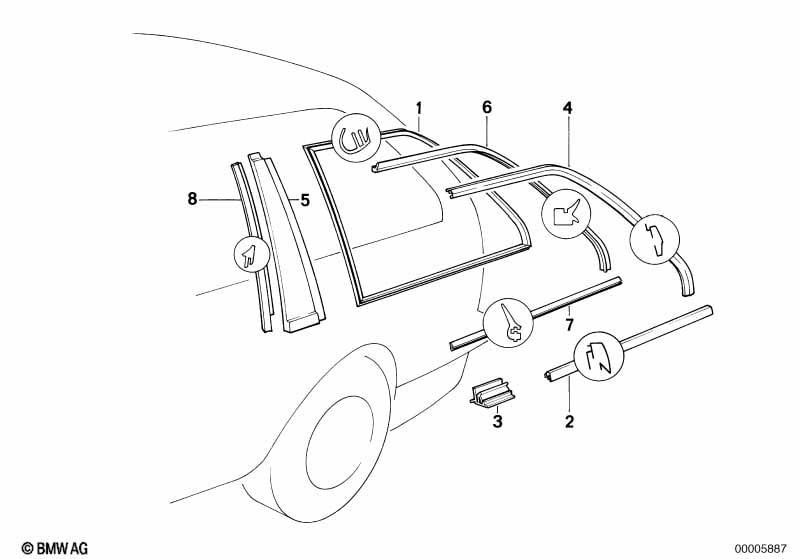

This Vitre latérale fixe technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protection d'arret gauche | 1 | 51361947235 | arrêté | Shop at ECS Tuning | |||||
| 01 | Protection d'arret droite | 1 | 51361947236 | arrêté | Shop at ECS Tuning | |||||
| 02 | Liteau d.decor inf.gauche | 1 | 51361947185 | arrêté | Shop at ECS Tuning | |||||
| 02 | Liteau d.decor inf.droite | 1 | 51361947186 | arrêté | Shop at ECS Tuning | |||||
| 03 | Agrafe | 8 | 51361947115 | Shop at ECS Tuning | ||||||
| 04 | Moulure superieure gauche | 1 | 51361947187 | arrêté | Shop at ECS Tuning | |||||
| 04 | Moulure superieure droite | 1 | 51361947188 | Shop at ECS Tuning | ||||||
| 05 | Cache gauche | 1 | 51361947183 | arrêté | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Support | 4 | 51368103369 | Shop at ECS Tuning | ||||||
| 05 | Cache droit | 1 | 51361947184 | arrêté | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Support | 4 | 51368103369 | Shop at ECS Tuning | ||||||
| 06 | Recouvrement | 2 | 51361947265 | Shop at ECS Tuning | ||||||
| 07 | Joint | 2 | 51361947259 | arrêté | Shop at ECS Tuning | |||||
| 08 | Joint gauche | 1 | 51361925321 | Shop at ECS Tuning | ||||||
| 08 | Joint droit | 1 | 51361925322 | Shop at ECS Tuning | ||||||
Note
- arrêté = la pièce n'est plus produite.
