Mécanisme de fenêtre de porte arrière for BMW 7 Series E23 728i (1986)

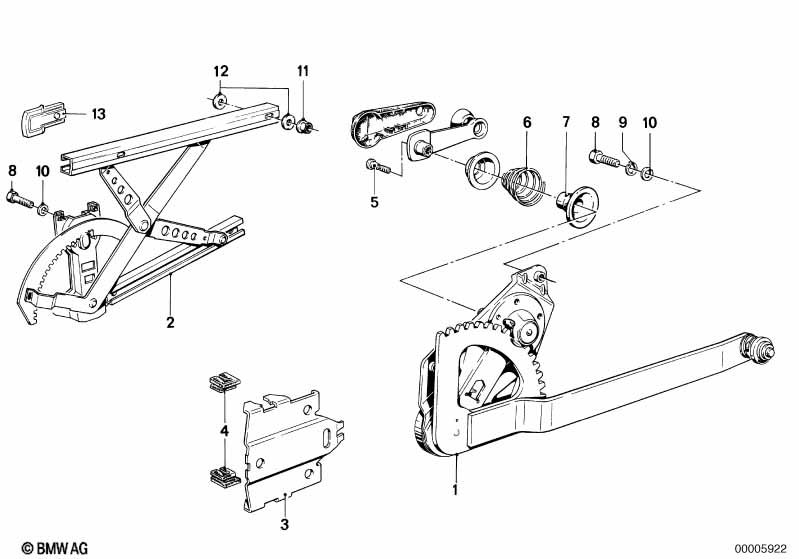

This Mécanisme de fenêtre de porte arrière technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Mécanisme de lève-vitre arrière gauche | 1 | 01/1979 | 51341867923 | $77.56 | arrêté | Shop at ECS Tuning | |||
| 02 | Mécanisme de lève-vitre arrière droite | 1 | 01/1979 | 51341867924 | $77.56 | arrêté | Shop at ECS Tuning | |||
| 03 | Support | 2 | 51321809844 | $5.23 | Shop at ECS Tuning | |||||
| 04 | Piece de glissement | 4 | 51321809881 | $1.30 | Shop at ECS Tuning | |||||
| 05 | Vis conique | 2 | 51211800790 | $0.67 | Shop at ECS Tuning | |||||
| 07 | Douille | 2 | 01/1981 | 51341886648 | $0.28 | Shop at ECS Tuning | ||||
| 08 | Vis six pans | M6X12-8.8-ZNNIV | X | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Rondelle grower | B6 | 6 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Plaque d'appui | A6,4-200HV-ZNS3 | X | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Ecrou à six pans autobloquant | M6 | 4 | 01/1979 | 51417053138 | $0.38 | Shop at ECS Tuning | |||
| 12 | Rondelle caoutchouc | X | 51185480151 | $0.57 | Shop at ECS Tuning | |||||
| 13 | Piece de glissement | 2 | 51321871969 | $1.75 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Mécanisme de fenêtre de porte arrière?
- This technical diagram illustrates the Mécanisme de fenêtre de porte arrière within the Equipement véhicule group for the 7 Series E23 728i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Mécanisme de lève-vitre arrière gauche (Part #51341867923).
- Which models use the hardware listed in this Mécanisme de fenêtre de porte arrière?
- The hardware and components featured in the Mécanisme de fenêtre de porte arrière are specific to the 7 Series E23 728i produced during 1986. These technical specifications ensure that parts like the Mécanisme de lève-vitre arrière gauche (51341867923) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mécanisme de fenêtre de porte arrière assembly?
- Each item in the Mécanisme de fenêtre de porte arrière corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Mécanisme de lève-vitre arrière gauche by locating its position on the schematic, which then links to the official BMW part number 51341867923 for the Equipement véhicule section.
