Mécanisme de fenêtre de porte arrière for BMW 5 Series E12 525 (1976)

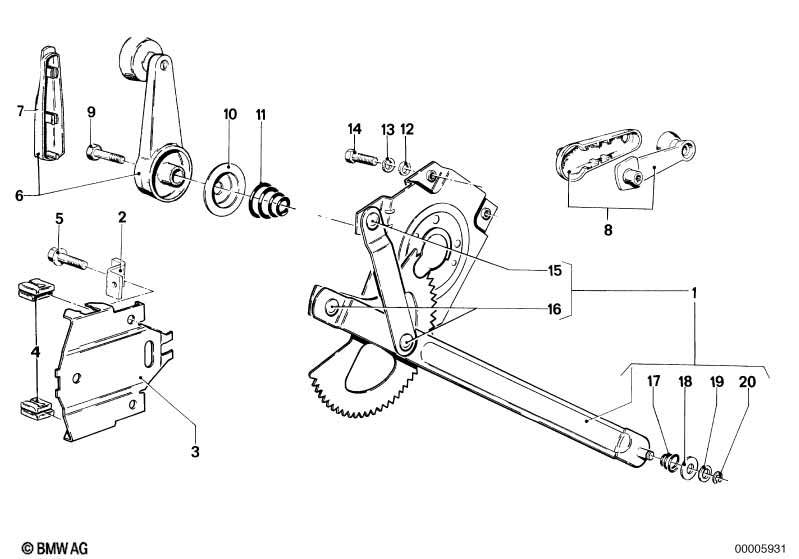

This Mécanisme de fenêtre de porte arrière technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mécanisme de lève-vitre arrière gauche | 1 | 51341809603 | $54.92 | Shop at ECS Tuning | |||||
| 01 | Mécanisme de lève-vitre arrière droite | 1 | 51341809604 | $54.92 | Shop at ECS Tuning | |||||
| 02 | Equerre | 2 | 08/1978 | 51321854992 | arrêté | Shop at ECS Tuning | ||||
| 03 | Support | 2 | 51321809844 | $5.23 | Shop at ECS Tuning | |||||
| 04 | Piece de glissement | 4 | 51321809881 | $1.30 | Shop at ECS Tuning | |||||
| 05 | Vis six pans avec rondelle | M6X18-Z4-2 | 4 | 07119915028 | arrêté | Shop at ECS Tuning | ||||
| 06 | Manivelle de lève-vitre avec cache | 2 | 09/1980 | 51321809764 | $63.26 | arrêté | Shop at ECS Tuning | |||
| 07 | Manivelle de lève-vitre avec cache | 2 | 09/1980 | 51321809764 | $63.26 | arrêté | Shop at ECS Tuning | |||
| 09 | Vis conique | 2 | 51211800790 | $0.67 | Shop at ECS Tuning | |||||
| 10 | Rondelle | SCHWARZ | 2 | 51321819852 | $6.12 | Shop at ECS Tuning | ||||
| 11 | Ressort conique | 2 | 51321870460 | $1.19 | Shop at ECS Tuning | |||||
| 12 | Plaque d'appui | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Rondelle grower | B6 | X | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Vis six pans avec rondelle | M6X16-U2-ZNS3 | 8 | 07119902913 | Shop at ECS Tuning | |||||
| 14 | Vis six pans | M6X12-8.8-ZNNIV | 8 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Rivet | 2 | 51341829556 | arrêté | Shop at ECS Tuning | |||||
| 16 | Rivet | 4 | 51321829995 | $0.97 | Shop at ECS Tuning | |||||
| 17 | Ressort | 2 | 51321836322 | $0.58 | Shop at ECS Tuning | |||||
| 18 | Plaque d'appui | 2 | 51321836323 | $0.53 | Shop at ECS Tuning | |||||
| 19 | Plaque d'appui | 2 | 51321836324 | $0.55 | Shop at ECS Tuning | |||||
| 20 | Disque de securite | 7,0 | 2 | 07119905858 | $0.96 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
