Mécanisme de fenêtre de porte avant for BMW 3 Series E30 320i (1990)

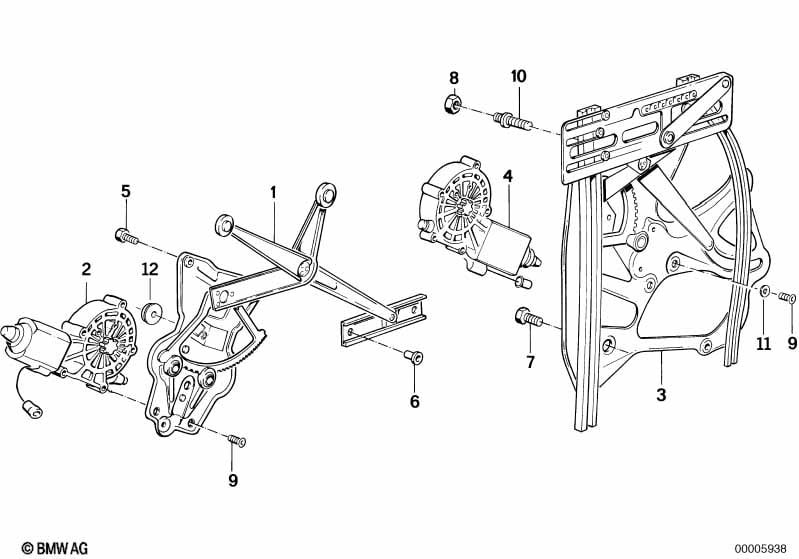

This Mécanisme de fenêtre de porte avant technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lève-glace électrique avant gauche | 1 | 51331935641 | $116.84 | Shop at ECS Tuning | |||||
| 01 | Lève-glace électrique avant droit | 1 | 51331935642 | $116.84 | Shop at ECS Tuning | |||||
| 02 | Moteur leve-glace Gauche | 1 | 51331385097 | $368.45 | arrêté | Shop at ECS Tuning | ||||
| 02 | Moteur leve-glace droit | 1 | 51331385098 | $346.55 | arrêté | Shop at ECS Tuning | ||||
| 03 | Lève-glace électrique arrière gauche | 1 | 51371935643 | $350.46 | arrêté | Shop at ECS Tuning | ||||
| 03 | Lève-glace électrique arrière droit | 1 | 51371935644 | $350.46 | arrêté | Shop at ECS Tuning | ||||
| 04 | Moteur leve-glace Gauche | 1 | 51351385099 | $326.88 | Shop at ECS Tuning | |||||
| 04 | Moteur leve-glace droit | 1 | 51351385100 | $326.88 | Shop at ECS Tuning | |||||
| 05 | Vis six pans avec rondelle | M6X12-U1-8.8 | 6 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Ecrou six pans avec plaque | M6 ZNT | 4 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Vis six pans avec rondelle | M8X18-SB-Z1 | 4 | 07119915072 | $0.30 | Shop at ECS Tuning | ||||
| 08 | Ecrou à collet | M8-8-SC-ZNNIV | 4 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 09 | Vis à tête noyée | 4 | 51371952879 | $0.80 | Shop at ECS Tuning | |||||
| 10 | Goujon fileté | 2 | 51371952878 | $8.90 | Shop at ECS Tuning | |||||
| 11 | Plaque d'appui | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Butée | 2 | 51338134038 | $2.97 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Mécanisme de fenêtre de porte avant?
- This technical diagram illustrates the Mécanisme de fenêtre de porte avant within the Equipement véhicule group for the 3 Series E30 320i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Lève-glace électrique avant gauche (Part #51331935641).
- Which models use the hardware listed in this Mécanisme de fenêtre de porte avant?
- The hardware and components featured in the Mécanisme de fenêtre de porte avant are specific to the 3 Series E30 320i produced during 1990. These technical specifications ensure that parts like the Lève-glace électrique avant gauche (51331935641) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mécanisme de fenêtre de porte avant assembly?
- Each item in the Mécanisme de fenêtre de porte avant corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Lève-glace électrique avant gauche by locating its position on the schematic, which then links to the official BMW part number 51331935641 for the Equipement véhicule section.
