Pare-chocs arriere for BMW 5 Series E28 535i (1987)

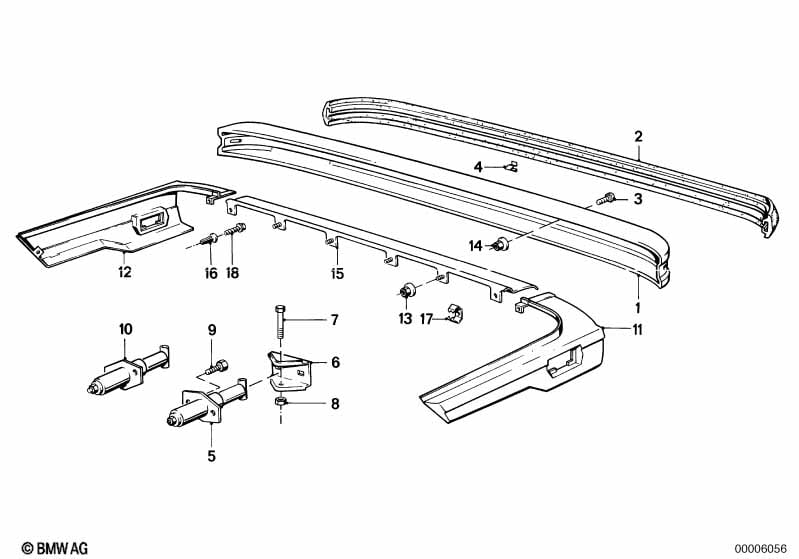

This Pare-chocs arriere technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pare-chocs arriere central | 1 | 51121953936 | $476.27 | Shop at ECS Tuning | |||||
| 02 | Lame de pare-chocs | 1 | 51121868523 | $176.49 | Shop at ECS Tuning | |||||
| 03 | Vis à tête bombée | M8X25 | 6 | 07119910457 | $0.62 | arrêté | Shop at ECS Tuning | |||
| 04 | Collier a liteau | 7 | 51111838076 | $1.98 | Shop at ECS Tuning | |||||
| 05 | Amortisseur de pare-chocs ar central | 1 | 51121868519 | $124.00 | Shop at ECS Tuning | |||||
| 06 | Fixation butoir | 3 | 51121830650 | $11.51 | Shop at ECS Tuning | |||||
| 07 | Vis six pans | M14X75 | 1 | 07119912870 | $5.38 | arrêté | Shop at ECS Tuning | |||
| 08 | Ecrou à six pans autobloquant | M14 | 1 | 07129922739 | $2.13 | Shop at ECS Tuning | ||||
| 09 | Vis six pans avec rondelle | M8X22-Z3 | X | 07119915084 | $0.41 | Shop at ECS Tuning | ||||
| 10 | Butoir de pare-chocs arriere | 2 | 51121868515 | $124.00 | Shop at ECS Tuning | |||||
| 11 | Pare-chocs arriere gauche | 1 | 51121868511 | $202.45 | arrêté | Shop at ECS Tuning | ||||
| 12 | Pare-chocs arriere droit | 1 | 51121868512 | $202.45 | arrêté | Shop at ECS Tuning | ||||
| 13 | Ecrou à six pans autobloquant | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Ecrou six pans avec plaque | M8 | 4 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 15 | Cache | 1 | 51121914503 | $170.77 | Shop at ECS Tuning | |||||
| 16 | Cage prestol | ST4,8 | 2 | 07129925765 | $0.18 | arrêté | Shop at ECS Tuning | |||
| 17 | Cage prestol | ST6,3-ZNS | 2 | 07129901748 | $0.25 | arrêté | Shop at ECS Tuning | |||
| 17 | Ecrou tôlé | ST 6,3 - 9 | 2 | 07129904216 | $0.25 | Shop at ECS Tuning | ||||
| 18 | Vis à tôle à six pans | ST4,8X19-C-Z2 | 2 | 07119916949 | $0.25 | Shop at ECS Tuning |
