Grille for BMW 5 Series E28 M535i (1987)

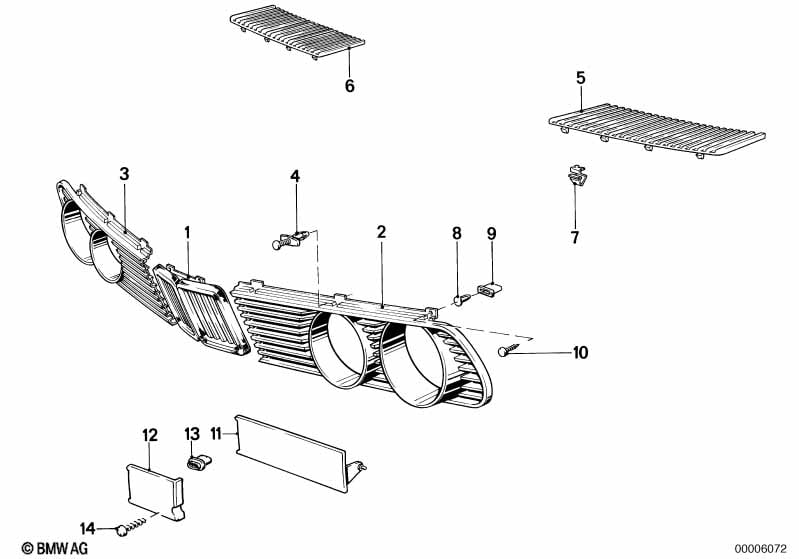

This Grille technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille de calandre centrale | 1 | 51131873253 | $108.45 | Shop at ECS Tuning | |||||
| 02 | Grille de calandre gauche | 1 | 09/1984 | 51131930827 | $128.61 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Climatiseur et Version tropicale |
=Oui =Oui |
|||||||||
| 02 | Grille de calandre gauche | 1 | 09/1984 | 51131919115 | $122.70 | Shop at ECS Tuning | ||||
| 03 | Grille de calandre droite | 1 | 09/1984 | 51131930828 | $128.61 | Shop at ECS Tuning | ||||
| Pour véhicules avec Climatiseur et Version tropicale |
=Oui =Oui |
|||||||||
| 03 | Grille de calandre droite | 1 | 09/1984 | 51131919116 | $127.48 | arrêté | Shop at ECS Tuning | |||
| 04 | Agrafe | X | 51131885399 | $0.35 | Shop at ECS Tuning | |||||
| 05 | Grille de calandre gauche | 1 | 51131874517 | $12.50 | arrêté | Shop at ECS Tuning | ||||
| 06 | Grille de calandre droite | 1 | 51131874518 | $20.84 | Shop at ECS Tuning | |||||
| 07 | Agrafe | 6 | 51131819327 | $0.18 | Shop at ECS Tuning | |||||
| 11 | Cache gauche | 1 | 51711873623 | $8.69 | Shop at ECS Tuning | |||||
| 11 | Cache droit | 1 | 51711873624 | $8.69 | Shop at ECS Tuning | |||||
| 12 | Cache gauche | 1 | 51711888653 | $8.23 | Shop at ECS Tuning | |||||
| 12 | Cache droit | 1 | 51711888654 | $8.23 | arrêté | Shop at ECS Tuning | ||||
| 13 | Bouton-poussoir | 2 | 51131820141 | $0.31 | Shop at ECS Tuning | |||||
| 14 | Vis a tole tête bombee | ST4,8X16-Z1 | 2 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
