Lame de pare-chocs for BMW 3 Series E30 323i (1986)

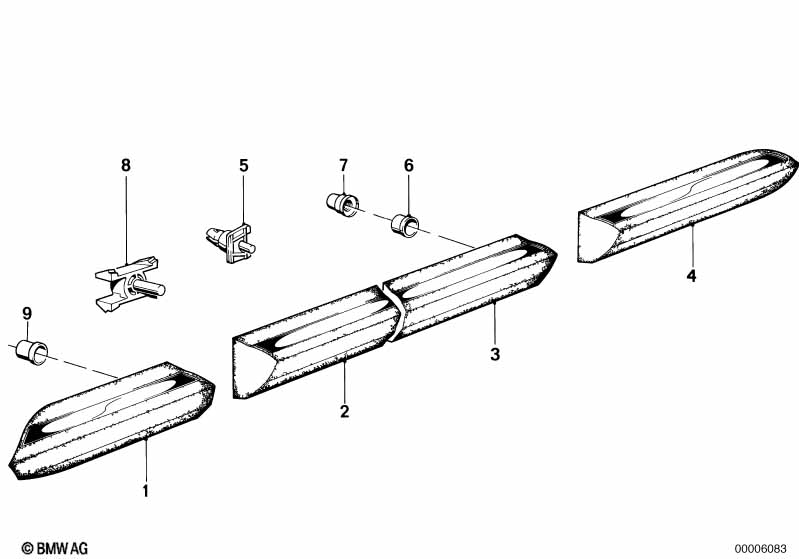

This Lame de pare-chocs technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulure de prot. laterale avant gauche | CHROM | 1 | 51131876129 | $45.78 | Shop at ECS Tuning | ||||
| 01 | Moulure de protection aile avant droite | CHROM | 1 | 51131876130 | $45.78 | Shop at ECS Tuning | ||||
| 02 | Moulure de protection porte avant gauche | CHROM | 1 | 51131876131 | $70.42 | arrêté | Shop at ECS Tuning | |||
| 02 | Moulure de prot.porte avant droite | CHROM | 1 | 51131876132 | $70.42 | Shop at ECS Tuning | ||||
| 02 | Moulure de protection porte avant gauche | CHROM | 1 | 51131904769 | $70.42 | Shop at ECS Tuning | ||||
| 02 | Moulure de prot.porte avant droite | CHROM | 1 | 51131904770 | $70.42 | Shop at ECS Tuning | ||||
| 03 | Moulure de prot.porte arriere gauche | CHROM | 1 | 51131904771 | $66.90 | Shop at ECS Tuning | ||||
| 03 | Moulure de prot.porte arriere droite | CHROM | 1 | 51131904772 | $66.90 | Shop at ECS Tuning | ||||
| 04 | Moulure de protection aile arriere g | CHROM | 1 | 51131876133 | $42.25 | Shop at ECS Tuning | ||||
| 04 | Moulure de prot. laterale arriere droite | CHROM | 1 | 51131876134 | $42.25 | Shop at ECS Tuning | ||||
| 05 | Collier a liteau | 6 | 51131876128 | $0.59 | Shop at ECS Tuning | |||||
| 06 | Douille | 2 | 51121867907 | $0.46 | Shop at ECS Tuning | |||||
| 06 | Douille | D=6,8 | 8 | 51131916449 | $0.50 | Shop at ECS Tuning | ||||
| 07 | Ecrou à chape | M4 | 6 | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Agrafe | 6 | 51131829904 | $0.42 | Shop at ECS Tuning | |||||
| 09 | Douille | 2 | 51121867907 | $0.46 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
